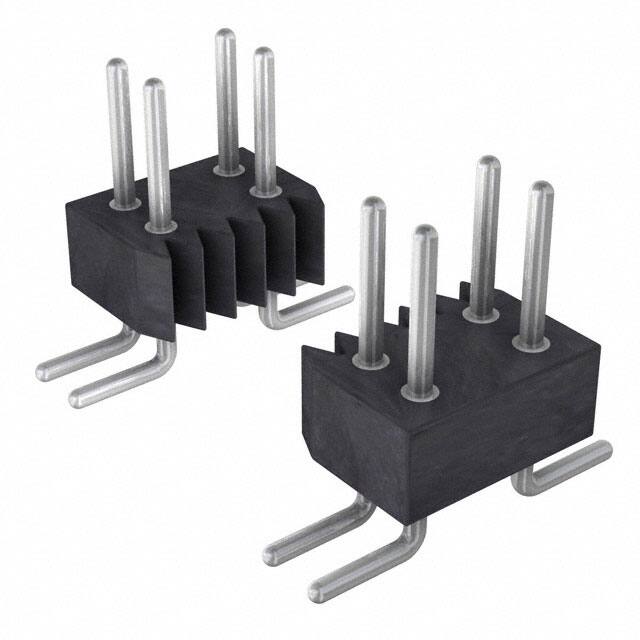

852-80-010-30-002101

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.050 1.27mm

Contact Materials

Brass

Parça Durumu

Active

Ambalaj

Bulk

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Insulation Color

Black

Seri

852

Style

Board to Board

Total Number Of Contacts

10

Pozisyon Sayısı

10

Terminal

Solder

Insulation Height

0.075 1.90mm

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch

Nominal Gerilim

150VDC

Durability

500 Cycles

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-55°C~125°C

Yayın Yılı

2012

Dielectric Withstanding Voltage

1400VAC V

Montaj

Surface Mount

Contact Lengthmating

0.118 3.00mm

Number Of Positions Loaded

All

Number Of Conductors

ONE

Material Flammability Rating

UL94 V-0

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Fastening Type

Push-Pull

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

Shrouding

Unshrouded

Body Breadth

0.174 inch

Row Spacing Mating

0.100 (2.54mm)

Contact Type

Male Pin

Contact Shape

Circular

Current Rating Amps

1A
