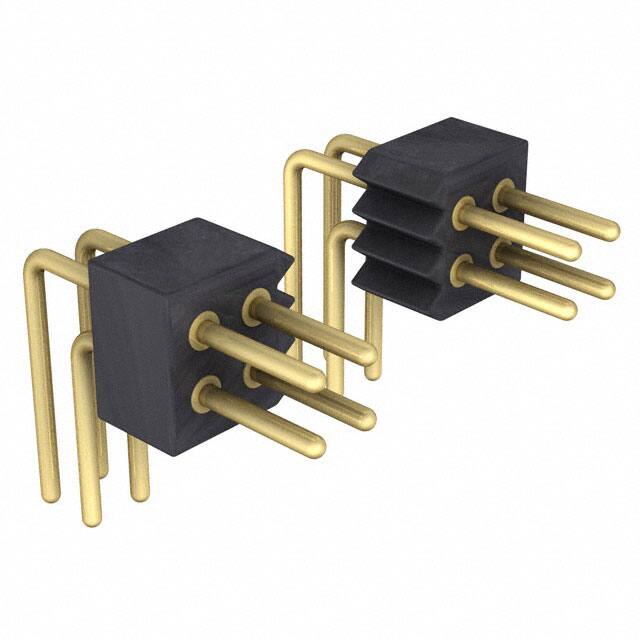

852-10-070-20-001101

Teknik Özellikler

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Lengthmating

0.118 3.00mm

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

70

Body Length Or Diameter

1.766 inch

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Terminal

Solder

Plating Thickness

10μin

Row Spacing Mating

0.050 (1.27mm)

Number Of Positions Loaded

All

Contact Type

Male Pin

Ambalaj

Bulk

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Nominal Gerilim

150VDC

Parça Durumu

Active

Insulation Height

0.128 3.25mm

Shrouding

Unshrouded

Durability

500 Cycles

Kurşunsuz

Lead Free

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Insulation Color

Black

Pitch Mating

0.050 1.27mm

Connector Type

Header

Number Of Pcb Rows

2

Current Rating Amps

1A

Yayın Yılı

2012

Contact Materials

Brass

Seri

852

Pcb Contact Pattern

RECTANGULAR

Style

Board to Board

Fabrika Tedarik Süresi

10 Weeks

Mating Contact Pitch

0.05 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.126 3.20mm

Insulation Resistance

10000000000Ohm

Montaj

Through Hole

Sıra Sayısı

2

Reliability

COMMERCIAL
