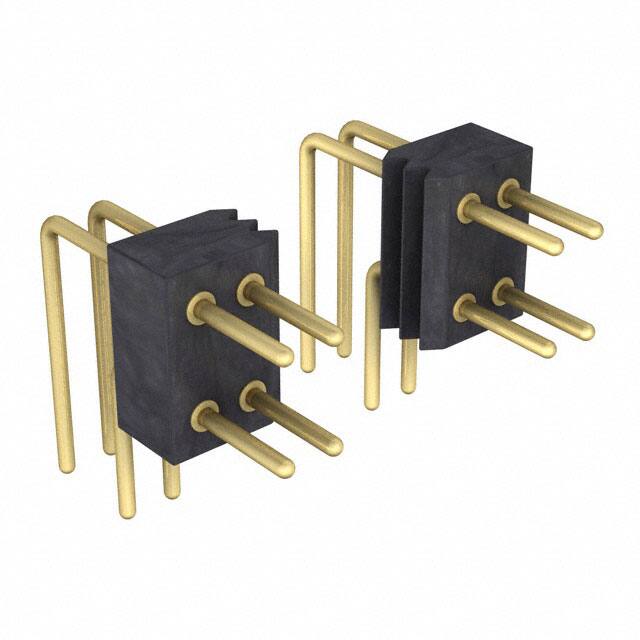

852-10-062-20-002101

Teknik Özellikler

Seri

852

Contact Materials

Brass

Yayın Yılı

2012

Current Rating Amps

1A

Connector Type

Header

Pitch Mating

0.050 1.27mm

Insulation Color

Black

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

10.0μin 0.25μm

Fastening Type

Push-Pull

Contact Shape

Circular

Sıra Sayısı

2

Montaj

Through Hole

Contact Length Post

0.126 3.20mm

Style

Board to Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Contact Type

Male Pin

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

62

Contact Lengthmating

0.118 3.00mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Shrouding

Unshrouded

Insulation Height

0.174 4.42mm

Parça Durumu

Active

Nominal Gerilim

150VDC

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk
