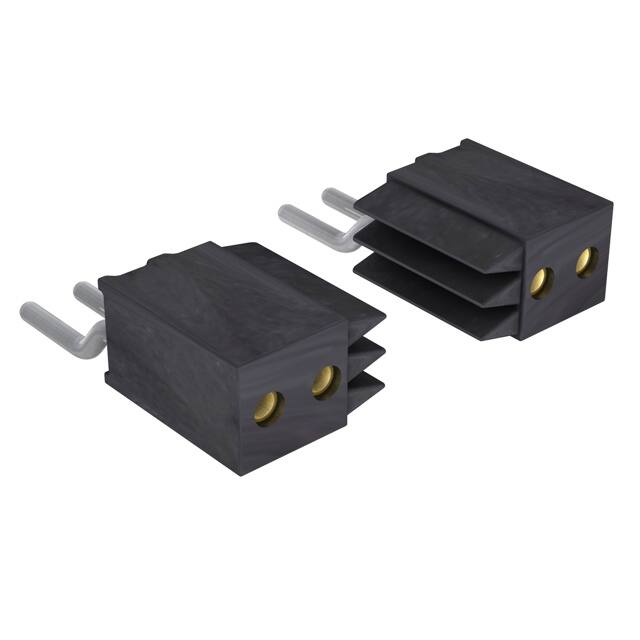

851-87-036-40-252101

Teknik Özellikler

Dielectric Withstanding Voltage

700VAC V

Contact Resistance

20mOhm

Body Depth

0.307 inch

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Connector Type

Socket

Polarization Key

POLARIZED HOUSING

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.087 2.20mm

Sıra Sayısı

1

Number Of Conductors

ONE

Insulation Color

Black

Montaj Tipi

Surface Mount, Right Angle

REACH Uyumluluk Kodu

unknown

Pitch Mating

0.050 1.27mm

Reference Standard

UL

Style

Board to Board

Seri

851

Ambalaj

Bulk

Total Number Of Contacts

36

Contact Finish Thickness Mating

Flash

Mating Contact Pitch

0.05 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

500 Cycles

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Contact Type

Female Socket

Body Breadth

0.087 inch

Montaj

Surface Mount

Contact Finish Post

Tin

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Pozisyon Sayısı

36

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

1A

Contact Materials

Beryllium Copper

Parça Durumu

Active

Contact Shape

Circular
