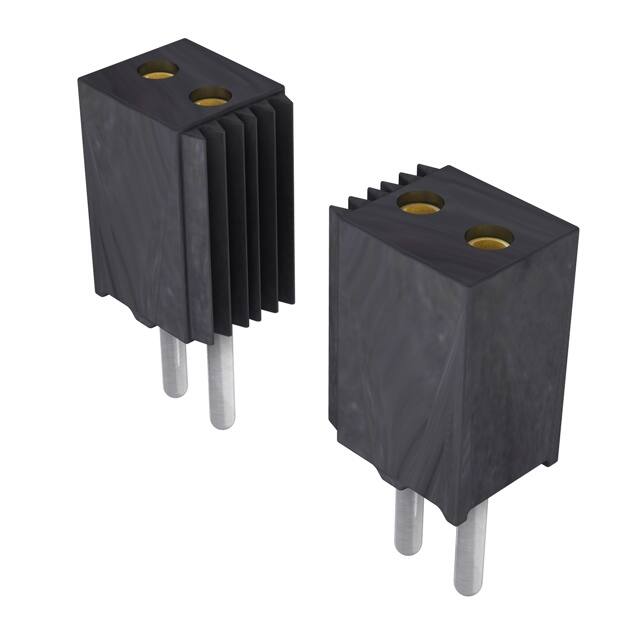

851-87-014-10-001101

Teknik Özellikler

Contact Type

Female Socket

Ul Flammability Code

94V-0

Contact Finish Thickness Mating

Flash

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

851

JESD-609 Kodu

e3

Style

Board to Board

Option

GENERAL PURPOSE

Iec Conformance

NO

Contact Resistance

20mOhm

Dielectric Withstanding Voltage

700VAC V

Fastening Type

Push-Pull

Yayın Yılı

2012

Din Conformance

NO

Kurşunsuz Kodu

yes

Gender

Female

Mil Conformance

NO

Parça Durumu

Active

Current Rating Amps

1A

Contact Materials

Beryllium Copper

Montaj

Through Hole

Contact Finish Post

Tin

Contact Finish Mating

Gold

Body Breadth

0.087 inch

Ambalaj

Bulk

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

10 Weeks

Durability

500 Cycles

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole

Reference Standard

UL

Pitch Mating

0.050 1.27mm

Sıra Sayısı

1

Number Of Conductors

ONE

Insulation Color

Black

Insulation Height

0.161 4.10mm

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Connector Type

Socket
