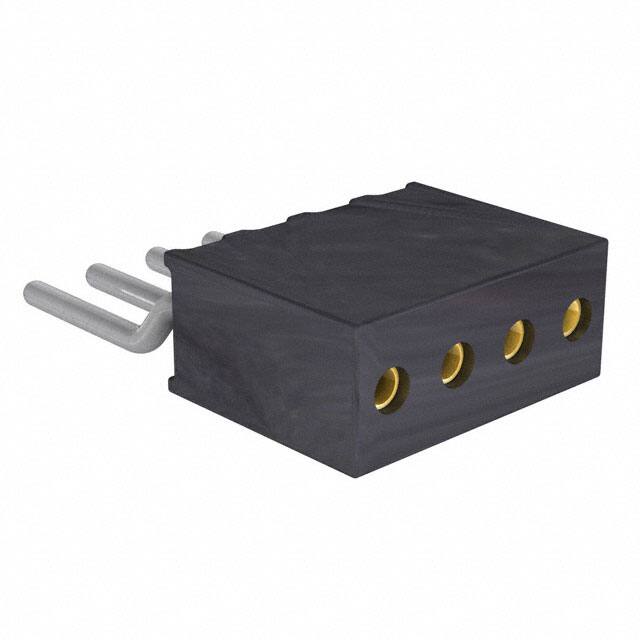

851-87-004-40-001101

Teknik Özellikler

Sıra Sayısı

1

Montaj Tipi

Surface Mount, Right Angle

Orientation

Right Angle

Pitch Mating

0.050 1.27mm

Style

Board to Board

Contact Resistance

20mOhm

Terminal

Solder

Connector Type

Socket

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Iec Conformance

NO

Insulation Height

0.087 2.20mm

Contact Type

Female Socket

Contact Finish Mating

Gold

Max Voltage Rating Ac

100V

Montaj

Surface Mount

Contact Finish Post

Tin

Seri

851

Uzunluk

5.49mm

JESD-609 Kodu

e4

Housing Material

Polychlorinated

Contact Finish Thickness Mating

Flash

Total Number Of Contacts

4

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

4

Housing Color

Black

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Filter Feature

NO

Contact Materials

Beryllium Copper

Max Current Rating

1A

Mixed Contacts

NO

Depth

8.8mm

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Din Conformance

NO

Kurşunsuz Kodu

yes

Yayın Yılı

2011
