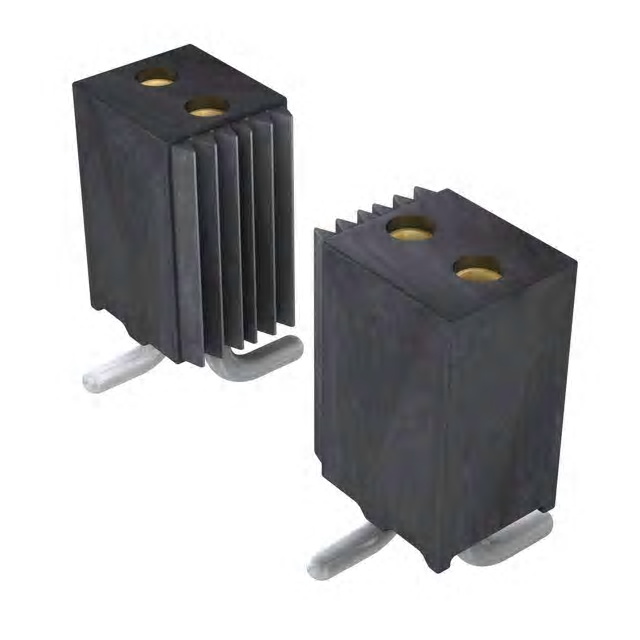

851-83-043-30-001101

Teknik Özellikler

Contact Shape

Circular

Parça Durumu

Active

Mil Conformance

NO

Yayın Yılı

2012

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Din Conformance

NO

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Depth

3.4mm

Mixed Contacts

NO

Max Current Rating

1A

Contact Materials

Beryllium Copper

Filter Feature

NO

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Housing Color

Black

Pozisyon Sayısı

43

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

43

Ambalaj

Bulk

Ul Flammability Code

94V-0

Contact Finish Thickness Mating

29.5μin 0.75μm

JESD-609 Kodu

e3

Seri

851

Contact Finish Post

Tin

Montaj

Surface Mount

Contact Finish Mating

Gold

Max Voltage Rating Ac

100V

Contact Type

Female Socket

Option

GENERAL PURPOSE

Iec Conformance

NO

Insulation Height

0.203 5.16mm

RoHS Durumu

ROHS3 Compliant

Connector Type

Socket

Terminal

Solder

Contact Resistance

20mOhm

Pitch Mating

0.050 1.27mm

Style

Board to Board
