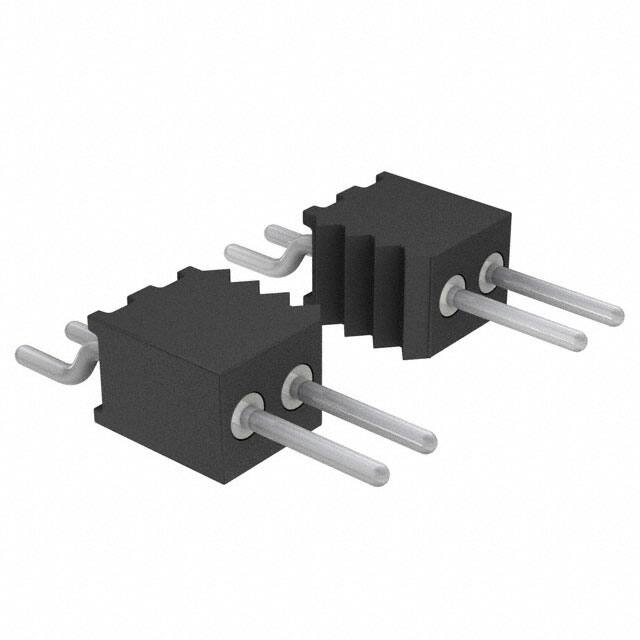

850-80-006-40-251101

Teknik Özellikler

Body Breadth

0.087 inch

Style

Board to Board

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Lengthmating

0.118 3.00mm

Ambalaj

Bulk

Nominal Gerilim

150VDC

Contact Materials

Brass

Çalışma Sıcaklığı

-55°C~125°C

Durability

500 Cycles

Sıra Sayısı

1

Total Number Of Contacts

6

Mating Contact Pitch

0.05 inch

Body Depth

0.232 inch

Fastening Type

Push-Pull

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

6

Seri

850

Number Of Conductors

ONE

Shrouding

Unshrouded

Number Of Pcb Rows

1

Insulation Color

Black

Montaj Tipi

Surface Mount, Right Angle

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Terminal

Solder

Montaj

Surface Mount

Pcb Contact Pattern

RECTANGULAR

Contact Type

Male Pin

Pitch Mating

0.050 1.27mm

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.087 2.20mm

Contact Shape

Circular

Current Rating Amps

1A

Reference Standard

UL

Yayın Yılı

2012

Connector Type

Header

Contact Finish Mating

Tin

Parça Durumu

Active
