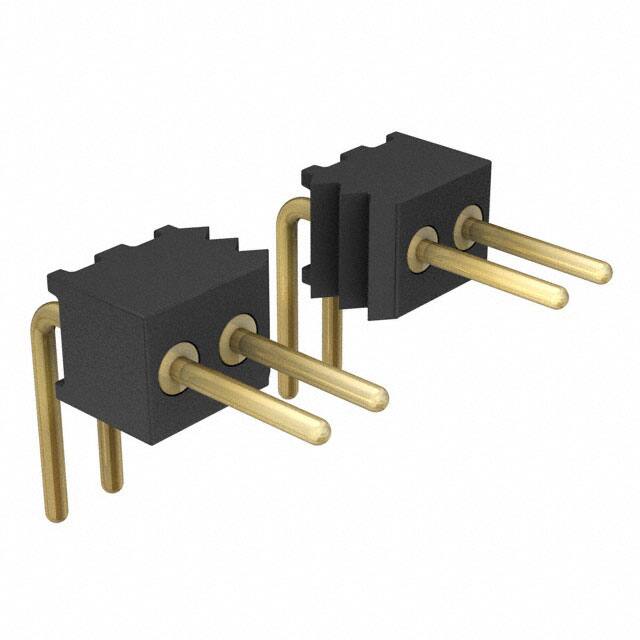

850-10-015-20-001101

Teknik Özellikler

Orientation

Right Angle

Max Voltage Rating Ac

100V

Style

Board to Board

Housing Color

Black

Contact Materials

Brass

Shrouding

Unshrouded

Body Breadth

0.087 inch

Fastening Type

Push-Pull

Terminal

Solder

Sıra Sayısı

1

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Housing Material

Polychlorinated

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

10.0μin 0.25μm

Ul Flammability Code

94V-0

Durability

500 Cycles

Nominal Gerilim

150VDC

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

JESD-609 Kodu

e4

Montaj

Through Hole

Insulation Height

0.087 2.20mm

Iec Conformance

NO

Filter Feature

NO

Uzunluk

19.46mm

Mil Conformance

NO

Mixed Contacts

NO

Din Conformance

NO

Pozisyon Sayısı

15

Connector Type

Header

Pcb Contact Pattern

RECTANGULAR

Gender

Male

Max Current Rating

1A

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.050 1.27mm

Reference Standard

UL

Contact Finish Thickness Post

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Reliability

COMMERCIAL
