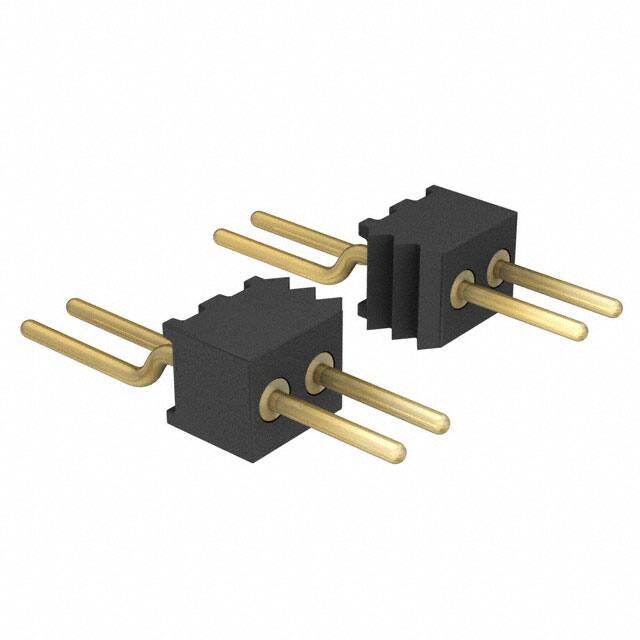

850-10-010-40-001101

Teknik Özellikler

Fastening Type

Push-Pull

Shrouding

Unshrouded

Body Breadth

0.086 inch

Reference Standard

UL

Terminal

Solder

Contact Finish Thickness Post

10.0μin 0.25μm

Sıra Sayısı

1

Çalışma Sıcaklığı

-55°C~125°C

Max Current Rating

1A

Orientation

Right Angle

Pitch Mating

0.050 1.27mm

Style

Board to Board

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Ac

100V

Contact Materials

Brass

Housing Color

Black

Contact Finish Mating

Gold

Contact Finish Thickness Mating

10.0μin 0.25μm

Reliability

COMMERCIAL

Housing Material

Polychlorinated

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Plating Thickness

9.8μin

Mating Contact Pitch

0.05 inch

Ambalaj

Tray

Depth

9.9mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Montaj

Surface Mount

Insulation Height

0.087 2.20mm

Montaj Tipi

Surface Mount, Right Angle

Rated Current Signal

1A

Total Number Of Contacts

10

Nominal Gerilim

150VDC

Seri

850

Contact Type

Male Pin

Number Of Pcb Rows

1

Pozisyon Sayısı

10

Contact Lengthmating

0.118 3.00mm
