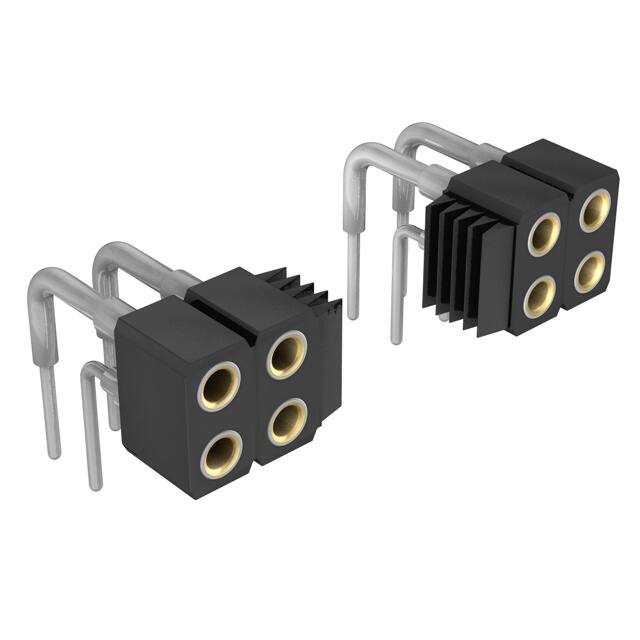

833-87-100-20-001101

Teknik Özellikler

Depth

7.85mm

Filter Feature

NO

Contact Shape

Circular

Mil Conformance

NO

Style

Board to Board

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Contact Length Post

0.126 3.20mm

Ul Flammability Code

94V-0

Max Voltage Rating Ac

100V

Uzunluk

100mm

Seri

833

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Insulation Height

0.165 4.20mm

Pozisyon Sayısı

100

Orientation

Right Angle

Sıra Sayısı

2

Housing Color

Black

Contact Type

Female Socket

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole, Right Angle

Çalışma Sıcaklığı

-55°C~125°C

Contact Materials

Beryllium Copper

Contact Finish Thickness Mating

Flash

Max Current Rating

3A

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Ambalaj

Bulk

Contact Resistance

10mOhm

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Iec Conformance

NO
