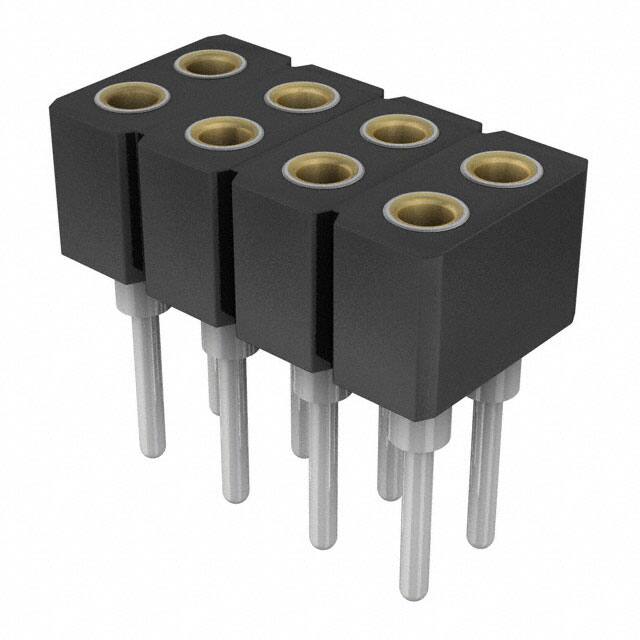

833-87-008-10-001101

Teknik Özellikler

Gender

Female

Contact Shape

Circular

Depth

4.2mm

Number Of Conductors

ONE

Body Breadth

0.165 inch

Style

Board to Board

Seri

833

Contact Length Post

0.125 3.18mm

Insulation Height

0.165 4.20mm

Polarization Key

POLARIZED HOUSING

Fastening Type

Push-Pull

Contact Type

Female Socket

Radyasyon Dayanımı

No

Reliability

COMMERCIAL

Sıra Sayısı

2

Durability

500 Cycles

Contact Finish Thickness Mating

Flash

Akım Değeri

3A

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Rated Current Signal

3A

Çalışma Sıcaklığı

-55°C~125°C

Mating Contact Pitch

0.079 inch

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Number Of Positions Loaded

All

Nominal Gerilim

150V

Number Of Pcb Rows

2

Housing Material

Polymer

Montaj

PCB, Through Hole

Yayın Yılı

2010

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Mating

Gold

Uzunluk

8mm

Max Voltage Rating Ac

100V

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin
