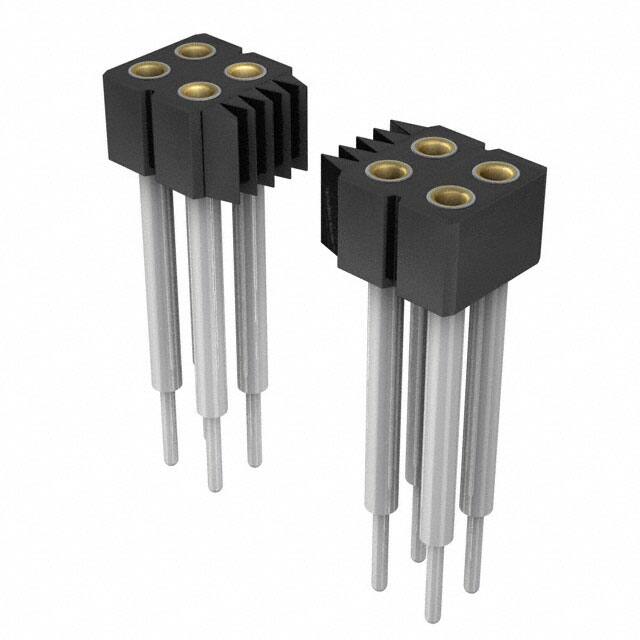

833-83-044-10-287101

Teknik Özellikler

Insulation Height

0.453 11.50mm

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Insulation Color

Black

Contact Finish Post

Tin

Seri

833

Contact Length Post

0.125 3.18mm

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Body Breadth

0.165 inch

Style

Board to Board

Contact Finish Mating

Gold

Contact Shape

Circular

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Pitch Mating

0.079 2.00mm

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Montaj

Through Hole

Connector Type

Socket

Yayın Yılı

2012

Insulation Resistance

10000000000Ohm

Mating Contact Pitch

0.079 inch

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Contact Resistance

10mOhm

Ambalaj

Bulk

Durability

500 Cycles

Body Depth

0.453 inch

Dielectric Withstanding Voltage

1400VAC V

Contact Finish Thickness Mating

29.5μin 0.75μm

Plating Thickness

30μin

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Materials

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C
