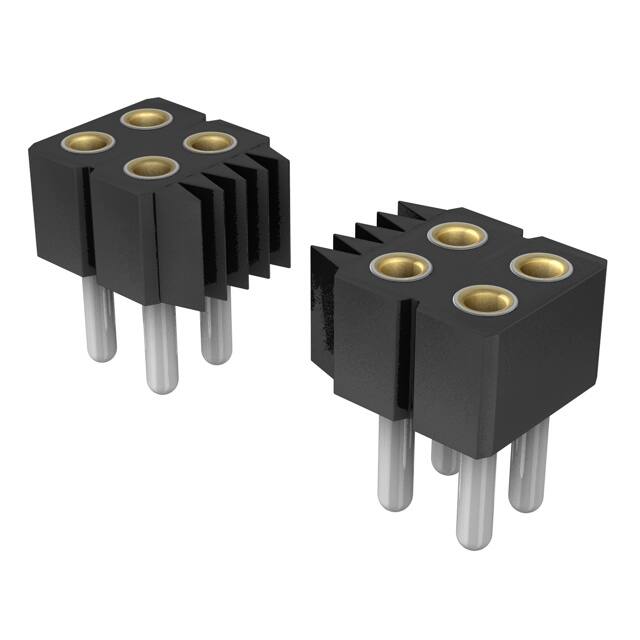

833-83-044-10-273101

Teknik Özellikler

Contact Shape

Circular

Reference Standard

UL

Body Breadth

0.165 inch

Row Spacing Mating

0.079 (2.00mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Contact Finish Mating

Gold

Style

Board to Board

Seri

833

Contact Length Post

0.122 3.10mm

Polarization Key

POLARIZED HOUSING

Insulation Height

0.110 2.79mm

Contact Finish Post

Tin

Insulation Color

Black

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Contact Type

Female Socket

Sıra Sayısı

2

Reliability

COMMERCIAL

Pozisyon Sayısı

44

Plating Thickness

30μin

Contact Finish Thickness Mating

29.5μin 0.75μm

Dielectric Withstanding Voltage

1400VAC V

Body Depth

0.11 inch

Durability

500 Cycles

Current Rating Amps

3A

Contact Materials

Beryllium Copper

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Through Hole

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

10000000000Ohm

Mating Contact Pitch

0.079 inch

Parça Durumu

Active

Ambalaj

Bulk

Contact Resistance

10mOhm

Number Of Positions Loaded

All

Number Of Pcb Rows

2
