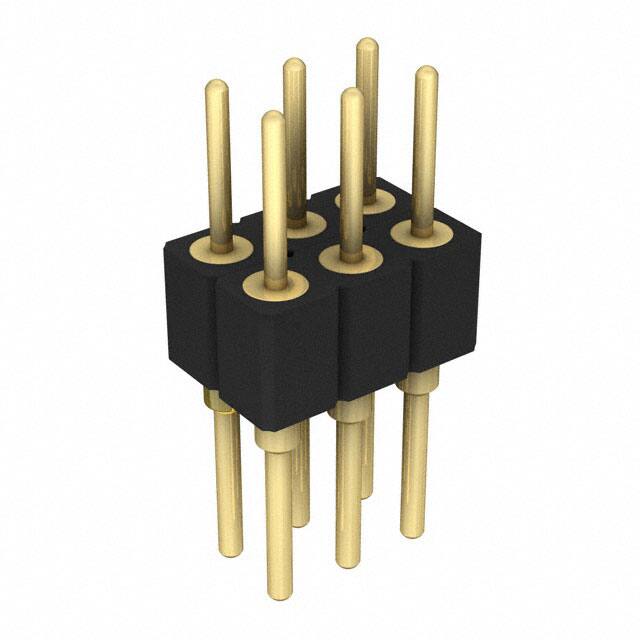

832-10-006-10-001101

Teknik Özellikler

Mating Contact Pitch

0.079 inch

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Rated Current Signal

3A

Number Of Pcb Rows

2

Uzunluk

6mm

Sıra Sayısı

2

Dielectric Withstanding Voltage

1400VAC V

Yayın Yılı

2012

Orientation

Straight

Nominal Gerilim

150VDC

Material Flammability Rating

UL94 V-0

Contact Shape

Circular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

3A

Number Of Conductors

ONE

Row Spacing Mating

0.079 (2.00mm)

Plating Thickness

10μin

Number Of Positions Loaded

All

Insulation Resistance

10000000000Ohm

Seri

832

Durability

500 Cycles

Montaj Tipi

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Style

Board to Board

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Contact Type

Male Pin

Pozisyon Sayısı

6

Contact Finish Thickness Post

10.0μin 0.25μm

Montaj

Through Hole

Overall Contact Length

0.394 10.00mm

Reference Standard

UL

Housing Material

Polymer

Contact Finish Mating

Gold

Insulation Height

0.110 2.79mm

Housing Color

Black

Shrouding

Unshrouded
