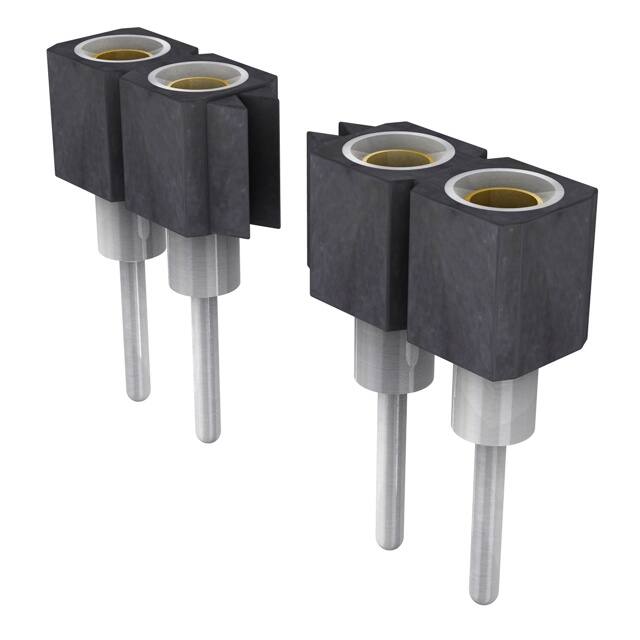

831-87-015-10-001101

Teknik Özellikler

Contact Finish Post

Tin

Contact Finish Thickness Mating

Flash

Insulation Color

Black

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Seri

831

Pozisyon Sayısı

15

Terminal

Solder

Ambalaj

Bulk

Insulation Height

0.165 4.20mm

Montaj Tipi

Through Hole

Polarization Key

POLARIZED HOUSING

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Reliability

COMMERCIAL

Contact Finish Mating

Gold

Durability

500 Cycles

HTS Kodu

8536.69.40.40

Style

Board to Board

Pitch Mating

0.079 2.00mm

Pcb Contact Pattern

RECTANGULAR

Current Rating Amps

3A

Montaj

Through Hole

Reference Standard

UL

Terminal Adımı

2.0066mm

Contact Type

Female Socket

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.125 3.18mm

Çalışma Sıcaklığı

-55°C~125°C

Connector Type

Socket

Contact Materials

Beryllium Copper

Contact Shape

Circular

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Sıra Sayısı

1

Mating Contact Pitch

0.079 inch

Yayın Yılı

2012

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Body Breadth

0.087 inch
