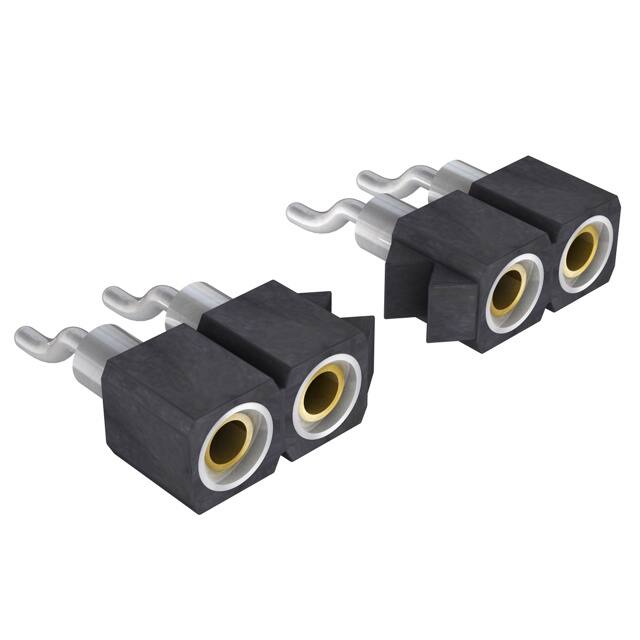

831-87-008-40-001101

Teknik Özellikler

Body Length Or Diameter

0.63 inch

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.079 2.00mm

Montaj

Surface Mount

Current Rating Amps

3A

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Terminal Adımı

2.0066mm

Contact Type

Female Socket

Contact Materials

Beryllium Copper

Connector Type

Socket

Contact Shape

Circular

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2012

Total Number Of Contacts

8

Mating Contact Pitch

0.079 inch

Sıra Sayısı

1

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fastening Type

Push-Pull

Contact Finish Thickness Mating

Flash

Contact Finish Post

Tin

Insulation Color

Black

Seri

831

Number Of Positions Loaded

All

Pozisyon Sayısı

8

Ambalaj

Bulk

Terminal

Solder

Insulation Height

0.087 2.20mm

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Number Of Pcb Rows

1

Montaj Tipi

Surface Mount, Right Angle

Polarization Key

POLARIZED HOUSING

Style

Board to Board

Reliability

COMMERCIAL

Contact Finish Mating

Gold

Durability

500 Cycles
