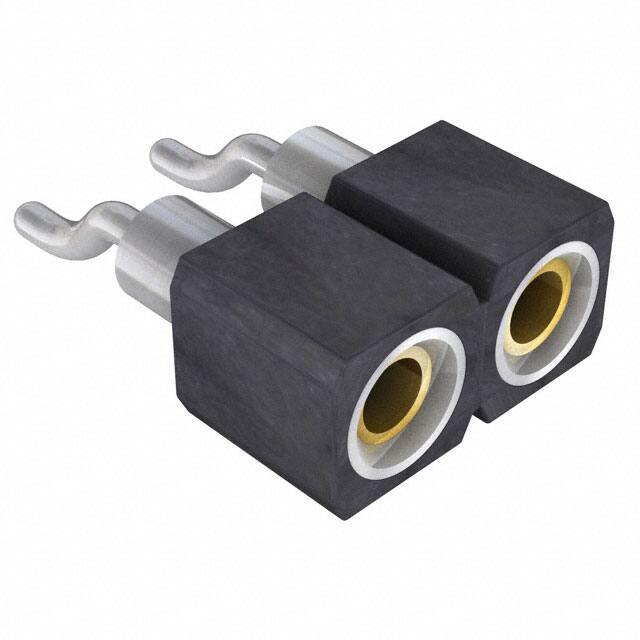

831-87-002-40-001101

Teknik Özellikler

Pozisyon Sayısı

2

Number Of Positions Loaded

All

Seri

831

Insulation Color

Black

Contact Finish Thickness Mating

Flash

Contact Finish Post

Tin

Reliability

COMMERCIAL

Contact Finish Mating

Gold

Durability

500 Cycles

Style

Board to Board

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Montaj Tipi

Surface Mount, Right Angle

Polarization Key

POLARIZED HOUSING

Number Of Pcb Rows

1

Insulation Height

0.087 2.20mm

Terminal

Solder

Ambalaj

Bulk

Contact Materials

Beryllium Copper

Connector Type

Socket

Çalışma Sıcaklığı

-55°C~125°C

Reference Standard

UL

Contact Type

Female Socket

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

3A

Montaj

Surface Mount

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.079 2.00mm

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Body Breadth

0.087 inch

Mating Contact Pitch

0.079 inch

Total Number Of Contacts

2

Yayın Yılı

2012

Sıra Sayısı

1

Contact Shape

Circular

Fabrika Tedarik Süresi

10 Weeks
