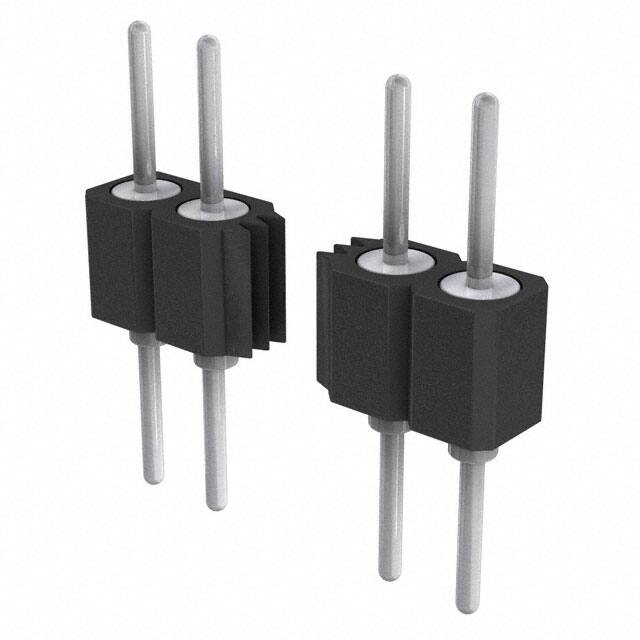

830-80-050-10-001101

Teknik Özellikler

Shrouding

Unshrouded

Ul Flammability Code

94V-0

Seri

830

Contact Length Post

0.114 2.90mm

Option

GENERAL PURPOSE

Insulation Height

0.110 2.79mm

Fastening Type

Push-Pull

Gender

Male

Contact Shape

Circular

Depth

2.2mm

Number Of Conductors

ONE

Body Breadth

0.087 inch

Style

Board to Board

Contact Lengthmating

0.141 3.60mm

Mating Contact Pitch

0.079 inch

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Nominal Gerilim

150VDC

Number Of Pcb Rows

1

Montaj

Through Hole

Housing Material

Polymer

Yayın Yılı

2012

Contact Type

Male Pin

Reliability

COMMERCIAL

Sıra Sayısı

1

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Rated Current Signal

3A

Çalışma Sıcaklığı

-55°C~125°C

Uzunluk

100mm

Max Voltage Rating Ac

100V

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Mil Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)
