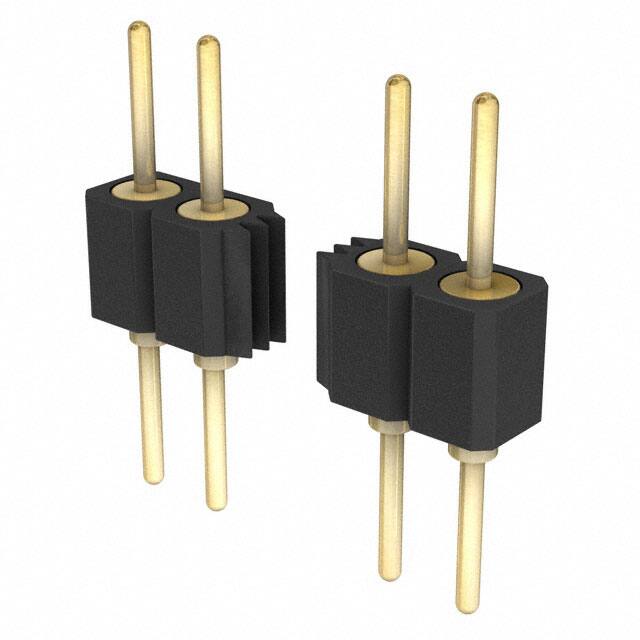

830-10-040-10-001101

Teknik Özellikler

Contact Shape

Circular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board

Contact Lengthmating

0.141 3.60mm

Contact Finish Mating

Gold

Shrouding

Unshrouded

Seri

830

Contact Length Post

0.114 2.90mm

Insulation Height

0.110 2.79mm

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Insulation Color

Black

Contact Type

Male Pin

Pozisyon Sayısı

40

Sıra Sayısı

1

Contact Finish Thickness Mating

10.0μin 0.25μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Overall Contact Length

0.394 10.00mm

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Contact Materials

Brass

Contact Finish Thickness Post

10.0μin 0.25μm

Current Rating Amps

3A

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Number Of Positions Loaded

All

Ambalaj

Bulk

Nominal Gerilim

150VDC

Pitch Mating

0.079 2.00mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Montaj

Through Hole

Yayın Yılı

2012

Connector Type

Header
