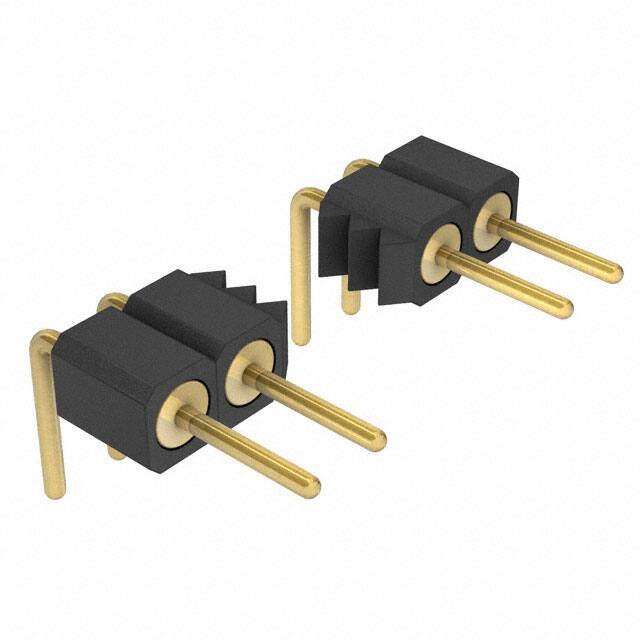

830-10-026-20-001101

Teknik Özellikler

Contact Shape

Circular

Depth

8.35mm

Number Of Conductors

ONE

Body Breadth

0.087 inch

Style

Board to Board

Contact Lengthmating

0.141 3.60mm

Shrouding

Unshrouded

Seri

830

Contact Length Post

0.126 3.20mm

Insulation Height

0.087 2.20mm

Fastening Type

Push-Pull

Terminal Adımı

2.0066mm

Contact Type

Male Pin

Reliability

COMMERCIAL

Sıra Sayısı

1

Durability

500 Cycles

Contact Finish Thickness Mating

10.0μin 0.25μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Rated Current Signal

3A

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Post

10.0μin 0.25μm

Mating Contact Pitch

0.079 inch

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Nominal Gerilim

150VDC

Number Of Pcb Rows

1

Montaj

Through Hole

Housing Material

Polymer

Yayın Yılı

2012

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Uzunluk

52mm

Max Voltage Rating Ac

100V

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Housing Color

Black

Pozisyon Sayısı

26
