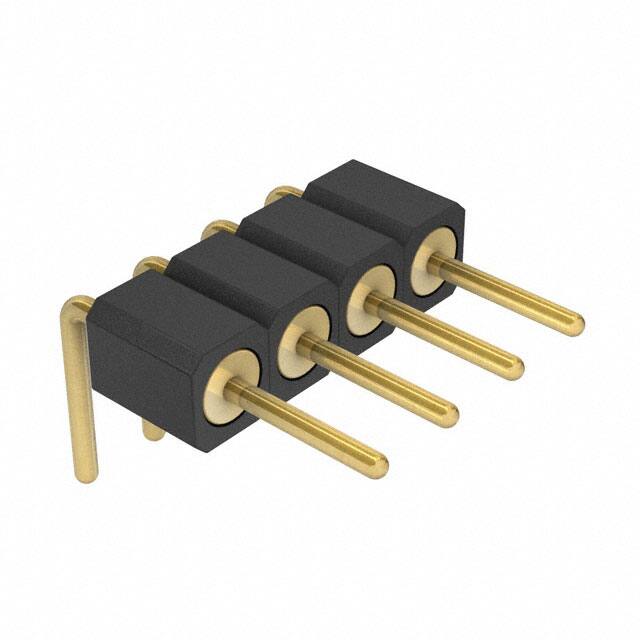

830-10-004-20-001101

Teknik Özellikler

Contact Length Post

0.126 3.20mm

Shrouding

Unshrouded

Uzunluk

8mm

Seri

830

Max Voltage Rating Ac

100V

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Insulation Height

0.087 2.20mm

Depth

8.35mm

Contact Shape

Circular

Reference Standard

UL

Style

Board to Board

Contact Lengthmating

0.141 3.60mm

Contact Finish Mating

Gold

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.087 inch

Number Of Positions Loaded

All

Ambalaj

Bulk

Nominal Gerilim

150VDC

Parça Durumu

Active

Mating Contact Pitch

0.079 inch

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Housing Material

Polymer

Montaj

Through Hole

Yayın Yılı

2012

Connector Type

Header

Pitch Mating

0.079 2.00mm

Number Of Pcb Rows

1

Pozisyon Sayısı

4

Reliability

COMMERCIAL

Sıra Sayısı

1

Orientation

Right Angle

Terminal Adımı

2.0066mm

Housing Color

Black

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

3A
