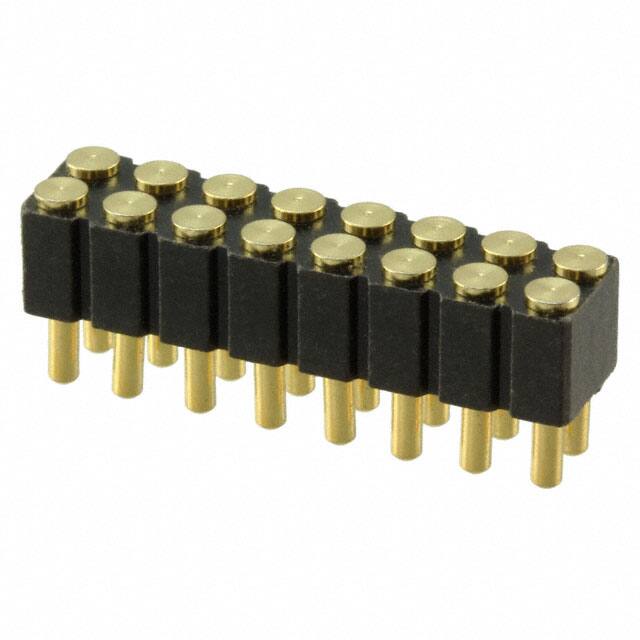

813-S1-016-30-017101

Teknik Özellikler

Montaj

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Black

Number Of Conductors

ONE

Material

Brass

Contact Pattern

RECTANGULAR

Maks. Çalışma Sıcaklığı

125°C

Radyasyon Dayanımı

No

Max Current Rating

3.5A

Contact Finish

Gold

Montaj Tipi

Surface Mount

Pitch

0.100 2.54mm

Contact Resistance

10mOhm

Orientation

Straight

Number Of Contacts

16

Contact Materials

Brass, Stainless Steel

Polarization Key

POLARIZED HOUSING

Housing Material

Polychlorinated

Durability

50000 Cycles

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Ac

100V

Contact Finish Thickness

19.7μin 0.50μm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

HTS Kodu

8536.69.40.40

Depth

5.08mm

Seri

813

Reference Standard

UL

Max Voltage Rating Dc

150V

Number Of Pcb Rows

2

Min. Çalışma Sıcaklığı

-55°C

Yayın Yılı

2012

Gender

Male

ECCN Kodu

EAR99

Uzunluk

20.32mm

Sıra Sayısı

2

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Insulation Resistance

10000000000Ohm

Row Spacing

0.100 (2.54mm)
