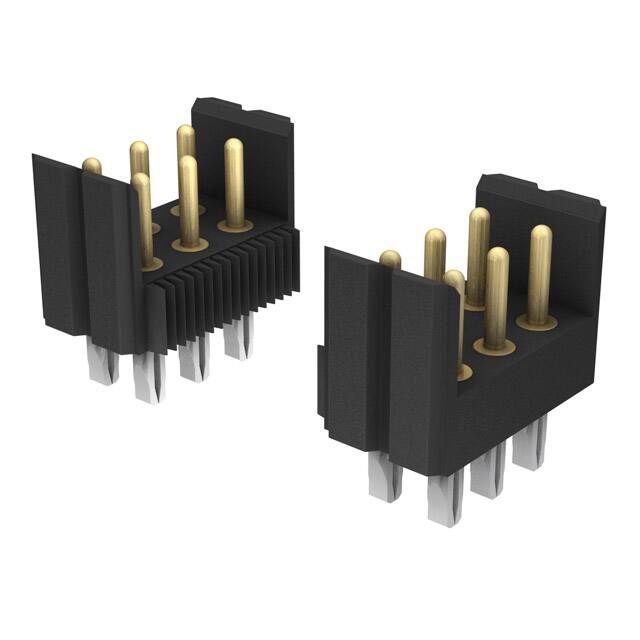

804-V3-054-6B-002101

Teknik Özellikler

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Contact Finish Post

Tin

Length Termination

0.11 inch

Insulation Height

0.272 6.91mm

Nominal Gerilim

150VDC

Number Of Conductors

ONE

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm

Current Rating Amps

3A

Shrouding

Unshrouded

Contact Lengthmating

0.141 3.60mm

Durability

500 Cycles

Insulation Color

Black

Contact Shape

Circular

Contact Type

Male Pin

Body Breadth

0.287 inch

Contact Length Post

0.110 2.79mm

Contact Materials

Bronze

Terminal

Press-Fit, Solder

Polarization Key

POLARIZED HOUSING

Style

Board to Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Finish Thickness Mating

29.5μin 0.75μm

Çalışma Sıcaklığı

-55°C~125°C

Reliability

COMMERCIAL

Insulation Resistance

10000000000Ohm

Pozisyon Sayısı

54

Sıra Sayısı

3

Overall Contact Length

0.378 9.60mm

Reference Standard

UL

Montaj Tipi

Through Hole

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Body Length Or Diameter

1.8 inch

Montaj

Through Hole

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
