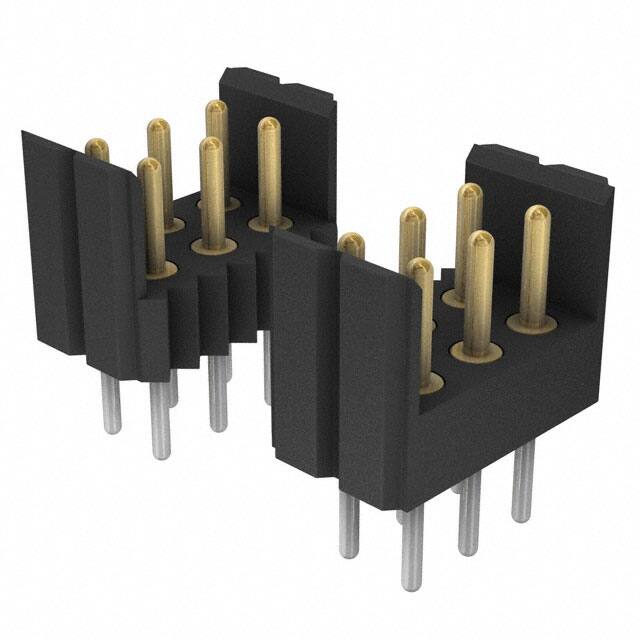

804-V3-051-12-002101

Teknik Özellikler

Number Of Conductors

ONE

Nominal Gerilim

150VDC

Insulation Height

0.272 6.91mm

Terminal Adımı

2.54mm

Current Rating Amps

3A

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Length Termination

0.118 inch

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Terminal

Solder

Pcb Contact Row Spacing

2.54 mm

Contact Materials

Brass

Contact Length Post

0.118 3.00mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board

Body Depth

0.272 inch

Insulation Color

Black

Durability

500 Cycles

Contact Lengthmating

0.141 3.60mm

Shrouding

Unshrouded

Contact Type

Male Pin

Contact Shape

Circular

Number Of Pcb Rows

3

Reliability

COMMERCIAL

Contact Finish Thickness Mating

29.5μin 0.75μm

Çalışma Sıcaklığı

-55°C~125°C

Seri

804

Dielectric Withstanding Voltage

1400VAC V

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Mating Contact Pitch

0.1 inch

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

Sıra Sayısı

3

Pozisyon Sayısı

51

Insulation Resistance

10000000000Ohm
