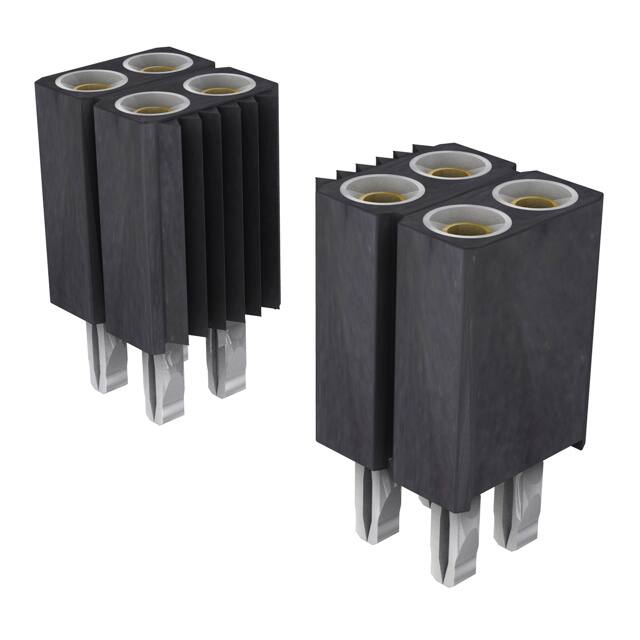

803-87-098-66-001101

Teknik Özellikler

Yayın Yılı

2012

Contact Finish Thickness Mating

Flash

Montaj

Through Hole

Contact Finish Post

Tin

Sıra Sayısı

2

Mating Contact Pitch

0.1 inch

Style

Board to Board

Row Spacing Mating

0.100 (2.54mm)

Length Termination

0.149 inch

Contact Shape

Circular

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

Seri

803

Material Flammability Rating

UL94 V-0

Contact Length Post

0.150 3.81mm

Ambalaj

Bulk

Connector Type

Socket

Durability

500 Cycles

Contact Type

Female Socket

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Fastening Type

Push-Pull

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

POLARIZED HOUSING

Current Rating Amps

3A

Çalışma Sıcaklığı

-55°C~125°C

Body Length Or Diameter

4.9 inch

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

98

Insulation Resistance

10000000000Ohm

Insulation Height

0.276 7.00mm

Dielectric Withstanding Voltage

1400VAC V

Number Of Pcb Rows

2

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Number Of Conductors

ONE

Terminal

Press-Fit, Solder

Contact Materials

Beryllium Copper
