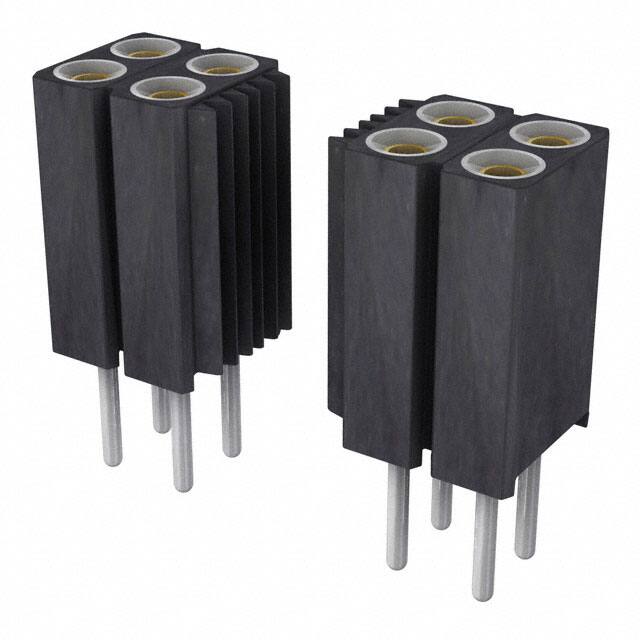

803-87-060-10-005101

Teknik Özellikler

Pozisyon Sayısı

60

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.335 8.51mm

Insulation Resistance

10000000000Ohm

Max Current Rating

3A

Dielectric Withstanding Voltage

1400VAC V

Fastening Type

Push-Pull

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Housing Material

Polychlorinated

Reliability

COMMERCIAL

Contact Materials

Beryllium Copper

Max Voltage Rating Ac

100V

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Contact Resistance

10mOhm

Reference Standard

UL

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Contact Finish Mating

Gold

Uzunluk

76.2mm

Terminal

Solder

Depth

5.08mm

Montaj

Through Hole

Contact Finish Post

Tin

Sıra Sayısı

2

Mating Contact Pitch

0.1 inch

Style

Board to Board

Row Spacing Mating

0.100 (2.54mm)

Orientation

Straight

Yayın Yılı

2012

Contact Finish Thickness Mating

Flash

Housing Color

Black

Contact Length Post

0.118 3.00mm

Ambalaj

Bulk

Connector Type

Socket

Durability

500 Cycles

Contact Type

Female Socket
