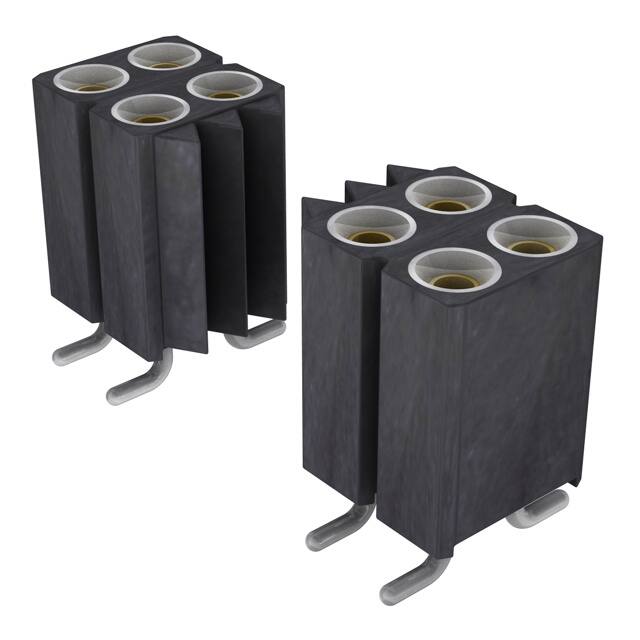

803-87-020-30-001101

Teknik Özellikler

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Materials

Beryllium Copper

Terminal

Solder

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Insulation Height

0.339 8.61mm

Pozisyon Sayısı

20

Mixed Contacts

NO

Çalışma Sıcaklığı

-55°C~125°C

Current Rating Amps

3A

Fabrika Tedarik Süresi

10 Weeks

Fastening Type

Push-Pull

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Type

Female Socket

Connector Type

Socket

Total Number Of Contacts

20

Ambalaj

Bulk

Filter Feature

NO

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

Seri

803

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Parça Durumu

Active

Ul Flammability Code

94V-0

Contact Shape

Circular

Din Conformance

NO

JESD-609 Kodu

e3

Row Spacing Mating

0.100 (2.54mm)

Radyasyon Dayanımı

No

Style

Board to Board

Mil Conformance

NO

Contact Finish Post

Tin

Sıra Sayısı

2

Montaj

Surface Mount

Gender

Female
