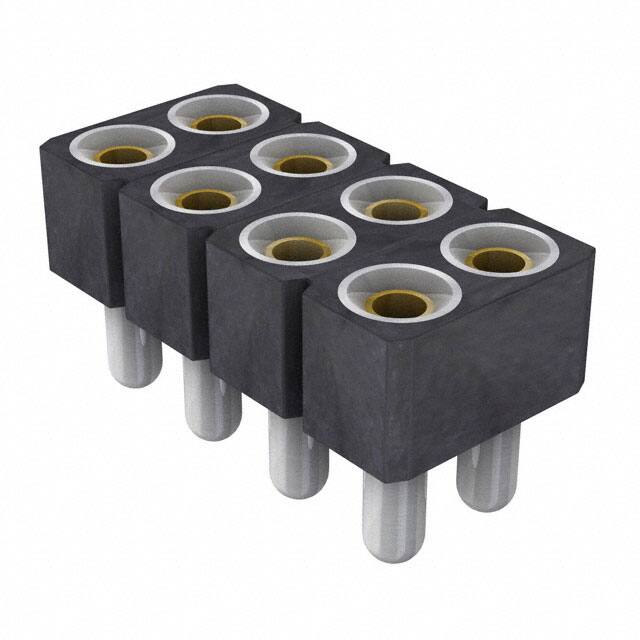

803-87-008-10-268101

Teknik Özellikler

Contact Length Post

0.108 2.75mm

Ambalaj

Bulk

Connector Type

Socket

Durability

500 Cycles

Contact Type

Female Socket

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Shape

Circular

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

Seri

803

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Contact Finish Post

Tin

Sıra Sayısı

2

Mating Contact Pitch

0.1 inch

Style

Board to Board

JESD-609 Kodu

e3

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2012

Contact Finish Thickness Mating

Flash

Contact Materials

Beryllium Copper

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Contact Resistance

10mOhm

Reference Standard

UL

Number Of Pcb Rows

2

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

1.1954 N

Number Of Conductors

ONE

Contact Finish Mating

Gold

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Body Depth

0.116 inch

Pozisyon Sayısı

8

Insulation Height

0.116 2.95mm

Insulation Resistance

10000000000Ohm

Dielectric Withstanding Voltage

1400VAC V

Fastening Type

Push-Pull
