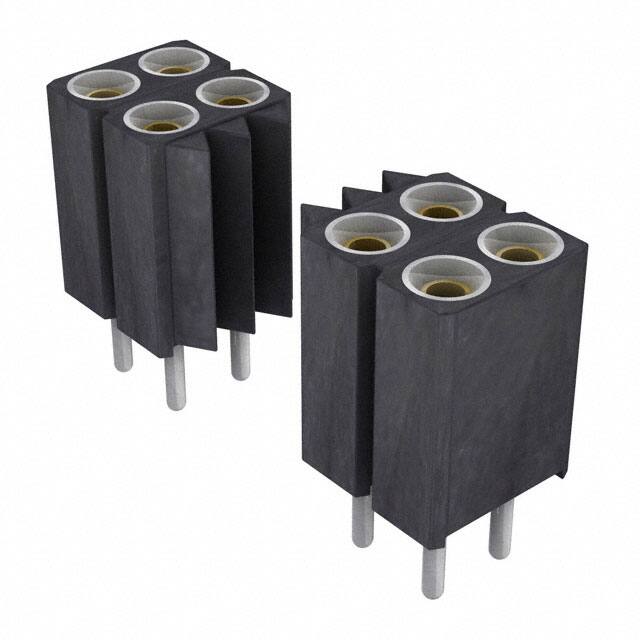

803-83-044-10-132101

Teknik Özellikler

Contact Finish Thickness Mating

29.5μin 0.75μm

Yayın Yılı

2012

Sıra Sayısı

2

Contact Finish Post

Tin

Montaj

Through Hole

Style

Board to Board

Row Spacing Mating

0.100 (2.54mm)

Contact Shape

Circular

Parça Durumu

Active

Seri

803

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Contact Length Post

0.118 3.00mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Connector Type

Socket

Contact Type

Female Socket

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-55°C~125°C

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

3A

Insulation Height

0.276 7.00mm

Pozisyon Sayısı

44

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Terminal

Solder

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Contact Materials

Beryllium Copper
