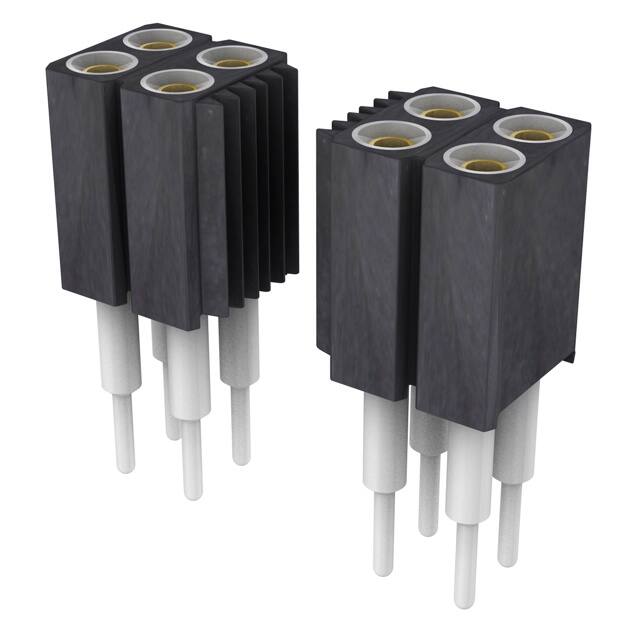

803-83-040-10-269101

Teknik Özellikler

Contact Materials

Beryllium Copper

Contact Resistance

10mOhm

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Uzunluk

50.8mm

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

10000000000Ohm

Max Current Rating

3A

Plating Thickness

30μin

Fastening Type

Push-Pull

ECCN Kodu

EAR99

Polarization Key

POLARIZED HOUSING

Housing Material

Polychlorinated

Contact Length Post

0.116 2.95mm

Ambalaj

Bulk

Contact Type

Female Socket

Connector Type

Socket

Durability

500 Cycles

Rated Current Signal

3A

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Depth

5.08mm

Mating Contact Pitch

0.1 inch

Contact Finish Post

Tin

Sıra Sayısı

2

Style

Board to Board

Orientation

Straight

Contact Finish Thickness Mating

29.5μin 0.75μm

Gender

Female

Max Voltage Rating Dc

150V

Housing Color

Black

Reference Standard

UL

Pitch Mating

0.100 2.54mm

Max Voltage Rating Ac

100V

Number Of Pcb Rows

2

Number Of Conductors

ONE

Terminal

Solder

Pozisyon Sayısı

40
