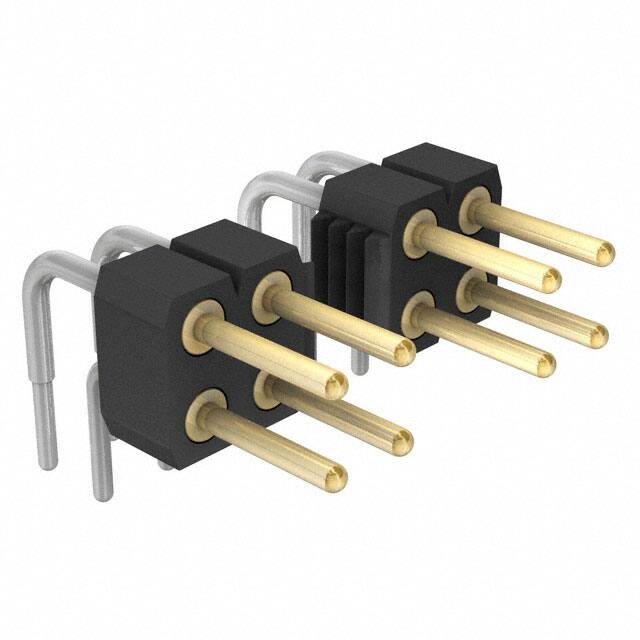

802-V3-040-20-001101

Teknik Özellikler

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Parça Durumu

Active

Sıra Sayısı

2

Contact Lengthmating

0.195 4.95mm

Reliability

COMMERCIAL

Pozisyon Sayısı

40

Pitch Mating

0.100 2.54mm

Reference Standard

UL

Nominal Gerilim

150VDC

Number Of Positions Loaded

All

Contact Type

Male Pin

Number Of Conductors

ONE

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.200 5.08mm

Style

Board to Board

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Connector Type

Header

Seri

802

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2012

Contact Materials

Brass

Insulation Resistance

10000000000Ohm

Contact Finish Mating

Gold

Durability

500 Cycles

Montaj

Through Hole

Contact Finish Post

Tin

Fastening Type

Push-Pull

Contact Length Post

0.126 3.20mm

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

2

Ambalaj

Bulk

Shrouding

Unshrouded

Mating Contact Pitch

0.1 inch

Pcb Contact Pattern

RECTANGULAR

Plating Thickness

30μin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

29.5μin 0.75μm
