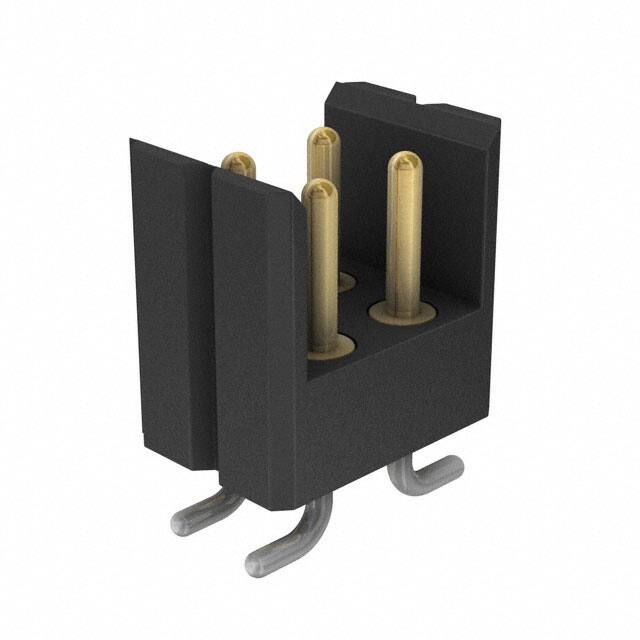

802-V3-004-32-002101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Circular

Contact Finish Thickness Mating

29.5μin 0.75μm

Current Rating Amps

3A

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Bulk

Shrouding

Unshrouded

Fastening Type

Push-Pull

Montaj

Surface Mount

Contact Finish Post

Tin

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Seri

802

Contact Materials

Brass

Yayın Yılı

2012

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board

Insulation Height

0.272 6.91mm

Connector Type

Header

Montaj Tipi

Surface Mount

Insulation Color

Black

Nominal Gerilim

150VDC

Pitch Mating

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Type

Male Pin

Number Of Positions Loaded

All

Pozisyon Sayısı

4

Sıra Sayısı

2

Parça Durumu

Active

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Lengthmating

0.141 3.60mm
