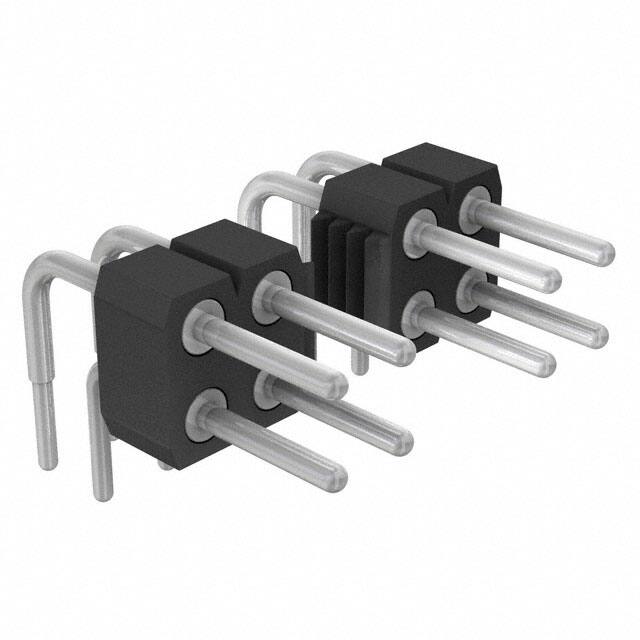

802-80-010-20-001101

Teknik Özellikler

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Sıra Sayısı

2

Contact Lengthmating

0.195 4.95mm

Reliability

COMMERCIAL

Rated Current Signal

3A

Max Voltage Rating Ac

100V

Pitch Mating

0.100 2.54mm

Yükseklik

5.08mm

Nominal Gerilim

150VDC

Çalışma Sıcaklığı

-55°C~125°C

Number Of Conductors

ONE

Akım Değeri

3A

Insulation Height

0.200 5.08mm

Style

Board to Board

Gender

Male

Seri

802

Yayın Yılı

2010

Row Spacing Mating

0.100 (2.54mm)

Depth

11.9mm

Montaj

Through Hole

Contact Finish Mating

Tin

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.126 3.20mm

Number Of Pcb Rows

2

Orientation

Right Angle

Ambalaj

Bulk

Mating Contact Pitch

0.1 inch

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Housing Material

Polychlorinated

Pozisyon Sayısı

10

Housing Color

Black

Reference Standard

UL

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

1400VAC V

Contact Type

Male Pin

Uzunluk

12.7mm

Connector Type

Header

Montaj Tipi

Through Hole, Right Angle
