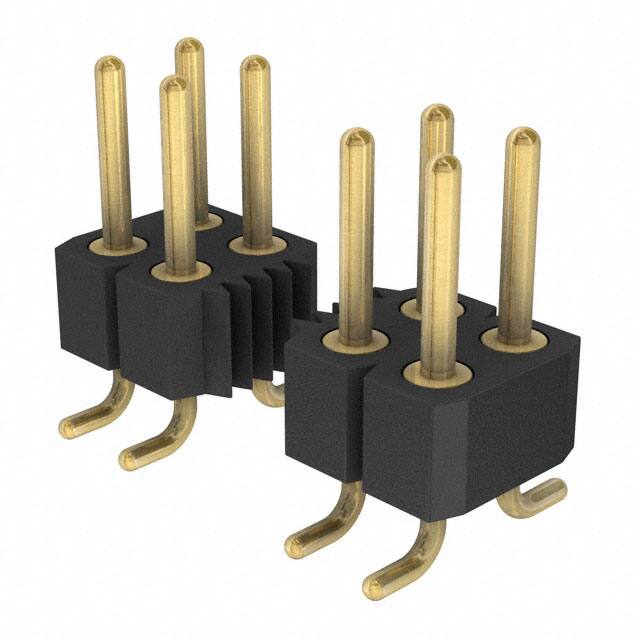

802-10-064-30-001101

Teknik Özellikler

Sıra Sayısı

2

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Lengthmating

0.191 4.85mm

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Nominal Gerilim

150VDC

Pitch Mating

0.100 2.54mm

Number Of Conductors

ONE

Çalışma Sıcaklığı

-55°C~125°C

Style

Board to Board

Insulation Height

0.110 2.79mm

Radyasyon Dayanımı

No

Gender

Male

Total Number Of Contacts

64

Seri

802

Row Spacing Mating

0.100 (2.54mm)

Yayın Yılı

2012

Mixed Contacts

NO

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Montaj

Surface Mount

RoHS Durumu

ROHS3 Compliant

Body Depth

0.189 inch

Ambalaj

Bulk

Number Of Pcb Rows

2

Contact Finish Thickness Post

10.0μin 0.25μm

Mating Contact Pitch

0.1 inch

Iec Conformance

NO

Mil Conformance

NO

Din Conformance

NO

Plating Thickness

10μin

Contact Finish Thickness Mating

10.0μin 0.25μm

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Pozisyon Sayısı

64

Ul Flammability Code

94V-0

Reference Standard

UL

Contact Type

Male Pin

Number Of Positions Loaded

All
