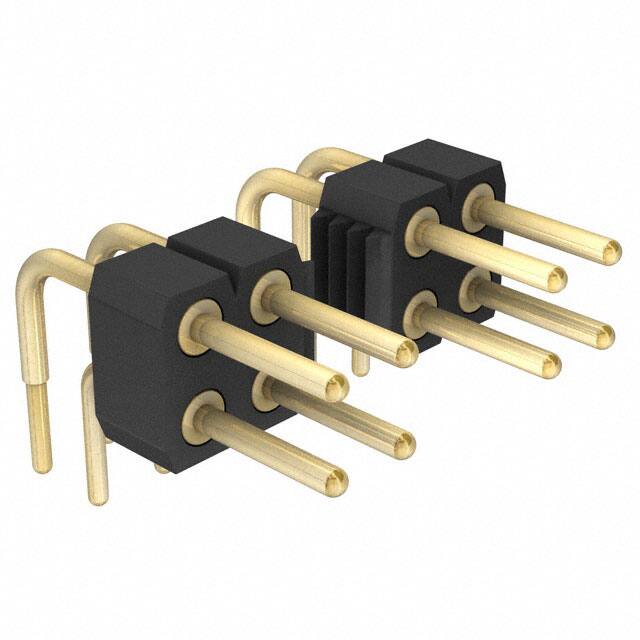

802-10-012-20-001101

Teknik Özellikler

Contact Lengthmating

0.195 4.95mm

Sıra Sayısı

2

Parça Durumu

Active

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pozisyon Sayısı

12

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~125°C

Contact Type

Male Pin

Number Of Conductors

ONE

Dielectric Withstanding Voltage

1400VAC V

Number Of Positions Loaded

All

Nominal Gerilim

150VDC

Reference Standard

UL

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Connector Type

Header

Body Length Or Diameter

0.6 inch

Style

Board to Board

Insulation Height

0.200 5.08mm

Insulation Resistance

10000000000Ohm

Contact Materials

Brass

Yayın Yılı

2012

Row Spacing Mating

0.100 (2.54mm)

Seri

802

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.126 3.20mm

Fastening Type

Push-Pull

Montaj

Through Hole

Durability

500 Cycles

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Post

10.0μin 0.25μm

Mating Contact Pitch

0.1 inch

Shrouding

Unshrouded

Ambalaj

Bulk

Number Of Pcb Rows

2

Contact Shape

Circular

Contact Finish Thickness Mating

10.0μin 0.25μm

Current Rating Amps

3A
