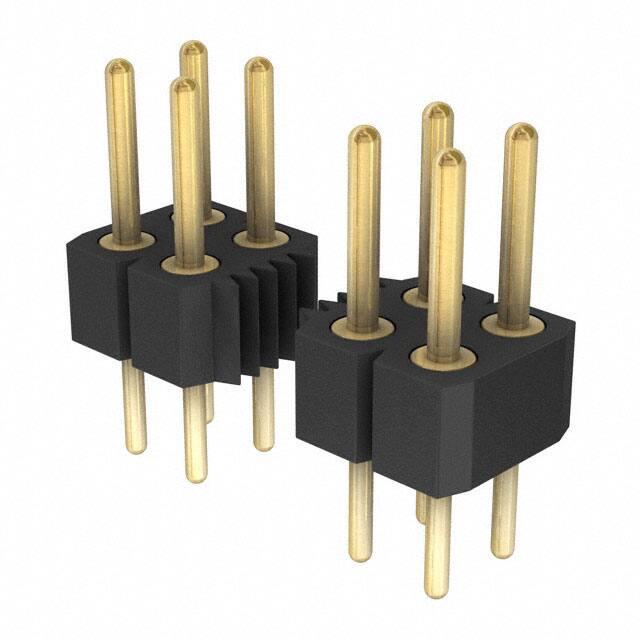

802-10-010-10-001101

Teknik Özellikler

Contact Materials

Brass

JESD-609 Kodu

e4

Max Current Rating

3A

Durability

500 Cycles

Shrouding

Unshrouded

Terminal

Solder

Contact Shape

Circular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Housing Color

Black

Pozisyon Sayısı

10

Housing Material

Polychlorinated

Dielectric Withstanding Voltage

1400VAC V

Number Of Positions Loaded

All

HTS Kodu

8536.69.40.40

Contact Type

Male Pin

Ul Flammability Code

94V-0

Reference Standard

UL

Filter Feature

NO

Montaj Tipi

Through Hole

Connector Type

Header

Uzunluk

12.7mm

ECCN Kodu

EAR99

Row Spacing Mating

0.100 (2.54mm)

Depth

5.08mm

Yayın Yılı

2012

Seri

802

Contact Length Post

0.121 3.08mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Montaj

Through Hole

Mixed Contacts

NO

Fastening Type

Push-Pull

Mating Contact Pitch

0.1 inch

Contact Finish Thickness Post

10.0μin 0.25μm

Orientation

Straight

Number Of Pcb Rows

2

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks
