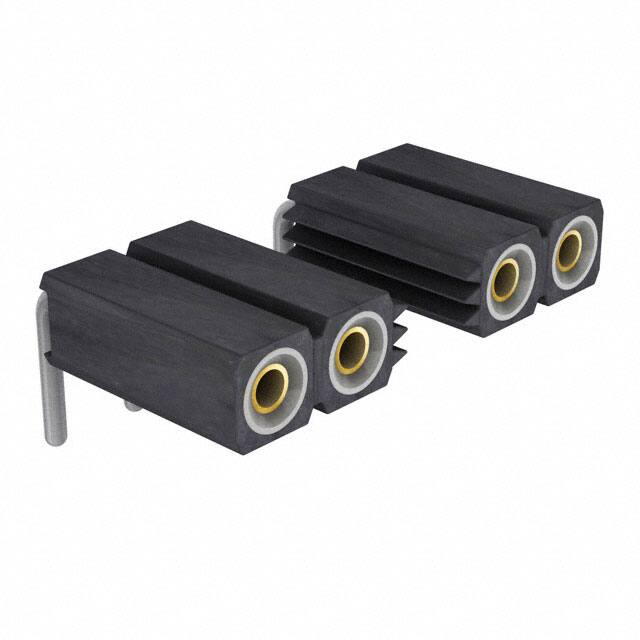

801-87-016-20-001101

Teknik Özellikler

Connector Type

Socket

Rated Current Signal

3A

Housing Color

Black

Depth

8.3mm

Contact Materials

Beryllium Copper

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Reliability

COMMERCIAL

Contact Resistance

10mOhm

Max Voltage Rating Ac

100V

Contact Type

Female Socket

Contact Finish Mating

Gold

Montaj Tipi

Through Hole, Right Angle

Number Of Conductors

ONE

Radyasyon Dayanımı

No

Pitch Mating

0.100 2.54mm

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pcb Contact Pattern

RECTANGULAR

Gender

Female

Contact Finish Post

Tin

Terminal

Solder

Insulation Height

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Max Current Rating

3A

Orientation

Right Angle

Polarization Key

POLARIZED HOUSING

Number Of Pcb Rows

1

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Housing Material

Polychlorinated

Uzunluk

40.64mm

Contact Length Post

0.126 3.20mm

Fastening Type

Push-Pull

Pozisyon Sayısı

16

Durability

500 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

Flash
