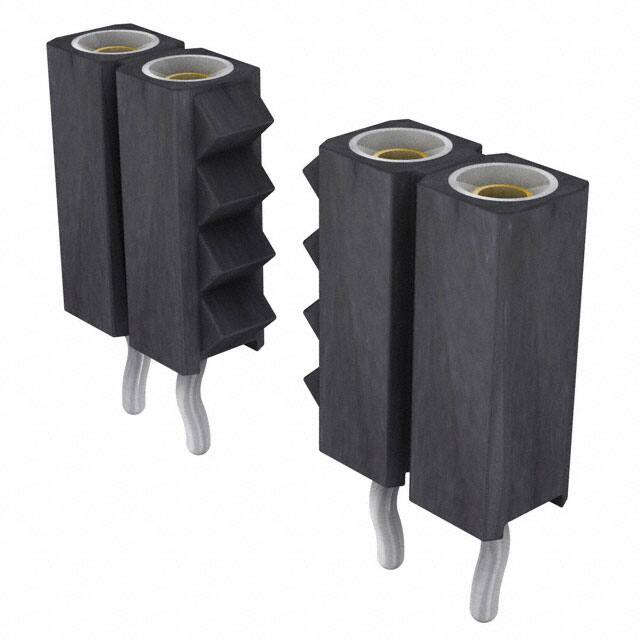

801-87-009-10-143101

Teknik Özellikler

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Post

Tin

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.5838 N

Mixed Contacts

NO

Contact Type

Female Socket

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

9

JESD-609 Kodu

e3

Fastening Type

Push-Pull

Contact Shape

Circular

Style

Board to Board

Sıra Sayısı

1

Insulation Color

Black

Body Depth

0.276 inch

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Mil Conformance

NO

Contact Length Post

0.118 3.00mm

Filter Feature

NO

Gender

Female

Current Rating Amps

3A

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.276 7.00mm

Montaj

Through Hole

Terminal

Kinked Pin, Solder

Connector Type

Socket

Material Flammability Rating

UL94 V-0

Contact Materials

Beryllium Copper

Number Of Positions Loaded

All

Terminal Adımı

2.54mm

Radyasyon Dayanımı

No

Pitch Mating

0.100 2.54mm

Din Conformance

NO

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold
