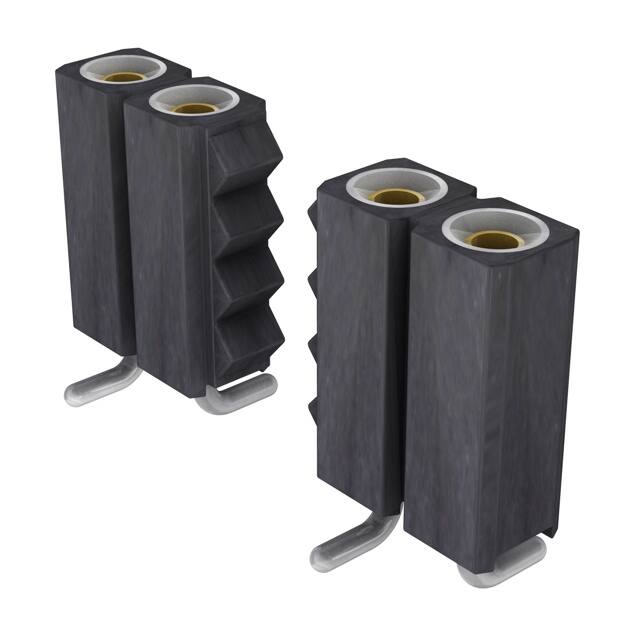

801-87-006-30-001101

Teknik Özellikler

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

POLARIZED HOUSING

Body Depth

0.339 inch

Number Of Pcb Rows

2

ECCN Kodu

EAR99

Seri

801

Style

Board to Board

Contact Shape

Circular

Fastening Type

Push-Pull

Pozisyon Sayısı

6

Durability

500 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

Flash

Yayın Yılı

2012

Insulation Color

Black

Reference Standard

UL

Sıra Sayısı

1

Ambalaj

Bulk

Total Number Of Contacts

6

Contact Materials

Beryllium Copper

Material Flammability Rating

UL94 V-0

Connector Type

Socket

Contact Finish Mating

Gold

Montaj Tipi

Surface Mount

Number Of Conductors

ONE

Terminal Adımı

5.08mm

Pitch Mating

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Number Of Positions Loaded

All

Contact Type

Female Socket

Pcb Contact Pattern

STAGGERED

Contact Finish Post

Tin

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.339 8.61mm

Montaj

Surface Mount

Current Rating Amps

3A
