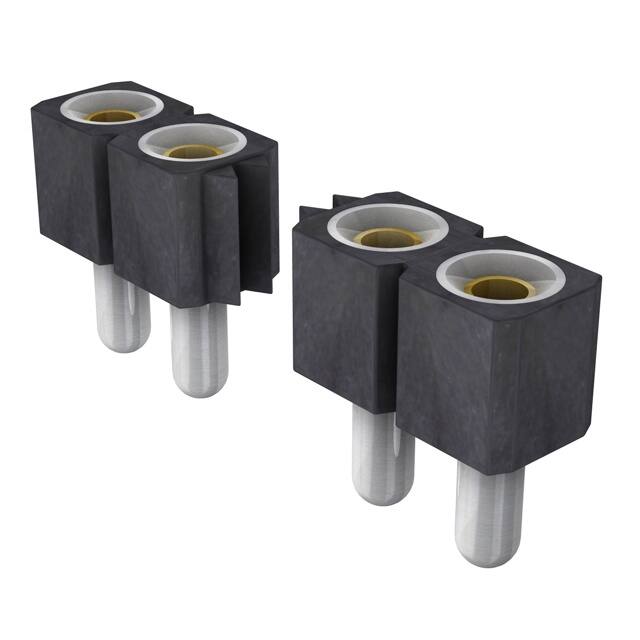

801-87-005-10-268101

Teknik Özellikler

Number Of Pcb Rows

1

Orientation

Straight

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

10 Weeks

Housing Material

Polychlorinated

Parça Durumu

Active

Uzunluk

12.7mm

ECCN Kodu

EAR99

Contact Length Post

0.108 2.75mm

Contact Finish Thickness Mating

Flash

Yayın Yılı

2012

Pozisyon Sayısı

5

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Circular

Seri

801

Style

Board to Board

Ambalaj

Bulk

Sıra Sayısı

1

Reference Standard

UL

Rated Current Signal

3A

Connector Type

Socket

Material Flammability Rating

UL94 V-0

Depth

2.54mm

Contact Materials

Beryllium Copper

Housing Color

Black

Max Voltage Rating Ac

100V

Contact Type

Female Socket

Contact Resistance

10mOhm

Number Of Positions Loaded

All

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Pitch Mating

0.100 2.54mm

Number Of Conductors

ONE

Contact Finish Mating

Gold

Montaj Tipi

Through Hole

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Post

Tin

Gender

Female
