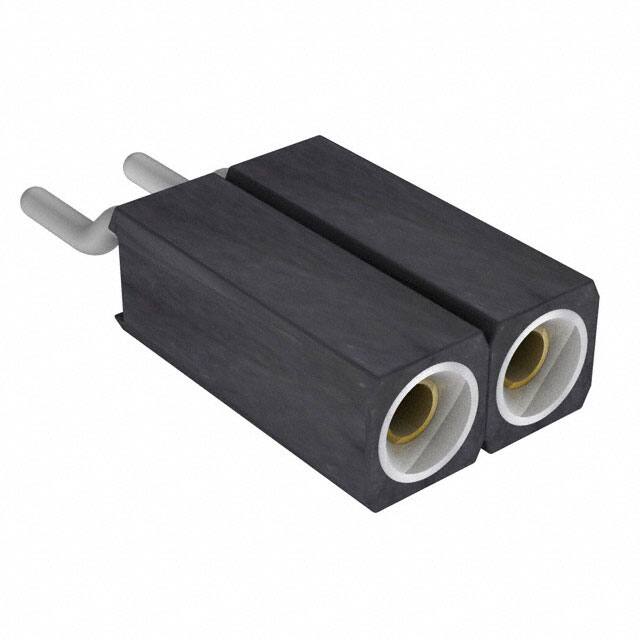

801-87-002-40-001191

Teknik Özellikler

Sıra Sayısı

1

Akım Değeri

3A

Ambalaj

Tube

Özellikler

Pick and Place

Insulation Color

Black

Fastening Type

Push-Pull

Pozisyon Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

Flash

Yayın Yılı

2010

Seri

801

Style

Board to Board

Contact Shape

Circular

Uzunluk

5.08mm

Nominal Gerilim

150V

Orientation

Right Angle

Parça Durumu

Active

Housing Material

Glass fibre

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Insulation Height

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Surface Mount

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Post

Tin

Number Of Positions Loaded

All

Contact Type

Female Socket

Montaj Tipi

Surface Mount, Right Angle

Contact Finish Mating

Gold

Contact Plating

Gold, Tin

Pitch Mating

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Connector Type

Socket

Depth

2.54mm

Contact Materials

Beryllium Copper

Material Flammability Rating

UL94 V-0

Genişlik

7mm
