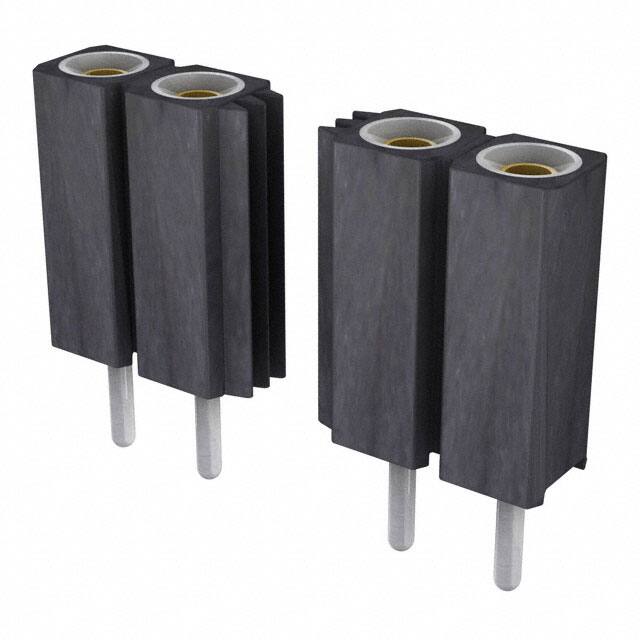

801-83-035-10-001101

Teknik Özellikler

Filter Feature

NO

Contact Finish Post

Tin

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.276 7.00mm

Montaj

Through Hole

Current Rating Amps

3A

Contact Materials

Beryllium Copper

Mixed Contacts

NO

Material Flammability Rating

UL94 V-0

Connector Type

Socket

Montaj Tipi

Through Hole

Contact Finish Mating

Gold

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Contact Type

Female Socket

Ul Flammability Code

94V-0

Style

Board to Board

Seri

801

Contact Shape

Circular

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

35

JESD-609 Kodu

e3

Contact Finish Thickness Mating

29.5μin 0.75μm

Yayın Yılı

2011

Insulation Color

Black

Iec Conformance

NO

Sıra Sayısı

1

Option

GENERAL PURPOSE

Ambalaj

Bulk

Parça Durumu

Active

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Contact Length Post

0.118 3.00mm
