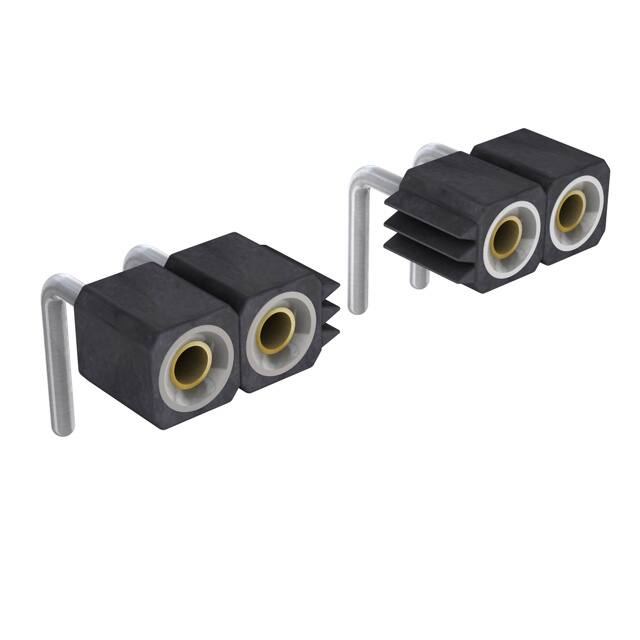

801-83-030-20-002101

Teknik Özellikler

Ambalaj

Bulk

Sıra Sayısı

1

Reference Standard

UL

Insulation Color

Black

Contact Finish Thickness Mating

29.5μin 0.75μm

Yayın Yılı

2012

Pozisyon Sayısı

30

Durability

500 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Circular

Style

Board to Board

Seri

801

Body Length Or Diameter

3 inch

Contact Length Post

0.126 3.20mm

Number Of Pcb Rows

1

Body Depth

0.22 inch

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Current Rating Amps

3A

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.100 2.54mm

Terminal

Solder

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Post

Tin

Pcb Contact Pattern

RECTANGULAR

Contact Type

Female Socket

Reliability

COMMERCIAL

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Terminal Adımı

2.54mm

Number Of Conductors

ONE

Montaj Tipi

Through Hole, Right Angle

Contact Finish Mating

Gold

Connector Type

Socket

Material Flammability Rating

UL94 V-0

Contact Materials

Beryllium Copper
