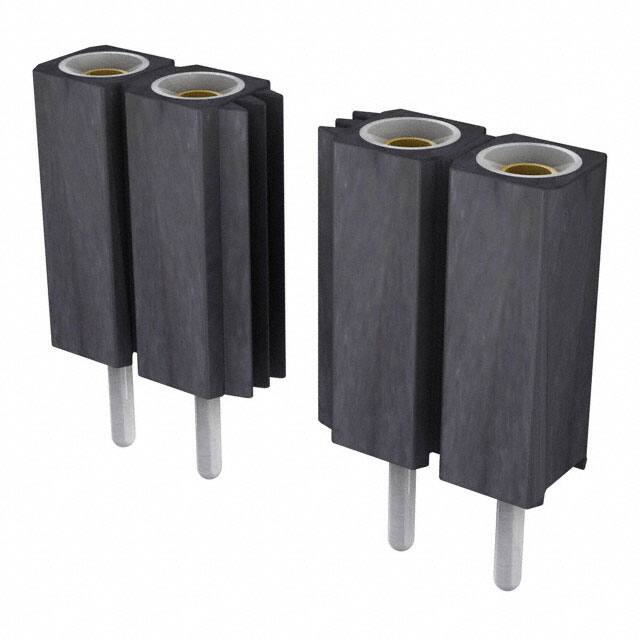

801-83-030-10-132101

Teknik Özellikler

Max Current Rating

3A

Montaj

Through Hole

Insulation Height

0.276 7.00mm

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Solder

Kılıf / Paket

SIP

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Post

Tin

Pcb Contact Pattern

RECTANGULAR

Max Voltage Rating Ac

100V

Contact Type

Female Socket

Contact Resistance

10mOhm

Number Of Positions Loaded

All

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Number Of Conductors

ONE

Montaj Tipi

Through Hole

Contact Finish Mating

Gold

Rated Current Signal

3A

Connector Type

Socket

Material Flammability Rating

UL94 V-0

Depth

2.54mm

Contact Materials

Beryllium Copper

Housing Color

Black

Ambalaj

Bulk

Sıra Sayısı

1

Reference Standard

UL

Contact Finish Thickness Mating

29.5μin 0.75μm

Yayın Yılı

2012

Pozisyon Sayısı

30

Durability

500 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Circular

Seri

801

Style

Board to Board

Uzunluk

76.2mm

Contact Length Post

0.118 3.00mm

Number Of Pcb Rows

1
