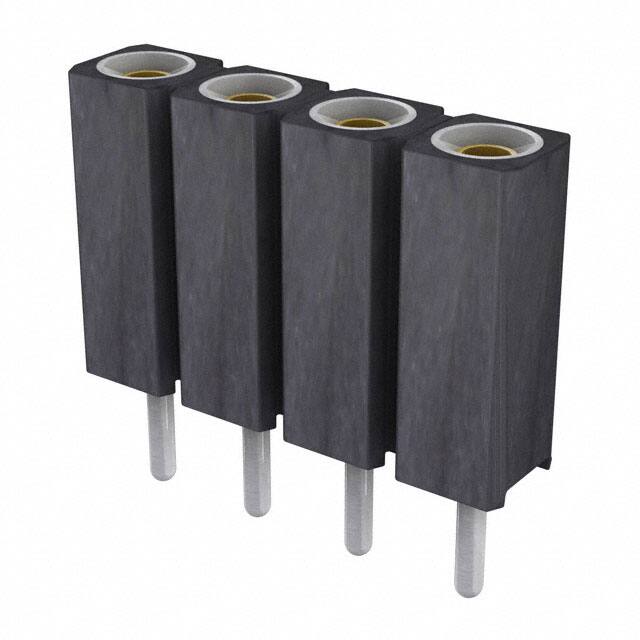

801-83-004-10-003101

Teknik Özellikler

Sıra Sayısı

1

Ambalaj

Bulk

Reference Standard

UL

Fastening Type

Push-Pull

Pozisyon Sayısı

4

Durability

500 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2012

Contact Finish Thickness Mating

29.5μin 0.75μm

Style

Board to Board

Seri

801

Contact Shape

Circular

ECCN Kodu

EAR99

Uzunluk

10.16mm

Contact Length Post

0.118 3.00mm

Polarization Key

POLARIZED HOUSING

Orientation

Straight

Number Of Pcb Rows

1

Parça Durumu

Active

Housing Material

Polychlorinated

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Kılıf / Paket

SIP

Plating Thickness

30μin

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.315 8.00mm

Max Current Rating

3A

Montaj

Through Hole

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pcb Contact Pattern

RECTANGULAR

Contact Finish Post

Tin

Reliability

COMMERCIAL

Number Of Positions Loaded

All

Contact Resistance

10mOhm

Contact Type

Female Socket

Max Voltage Rating Ac

100V

Montaj Tipi

Through Hole

Contact Finish Mating

Gold

Number Of Conductors

ONE

Pitch Mating

0.100 2.54mm
