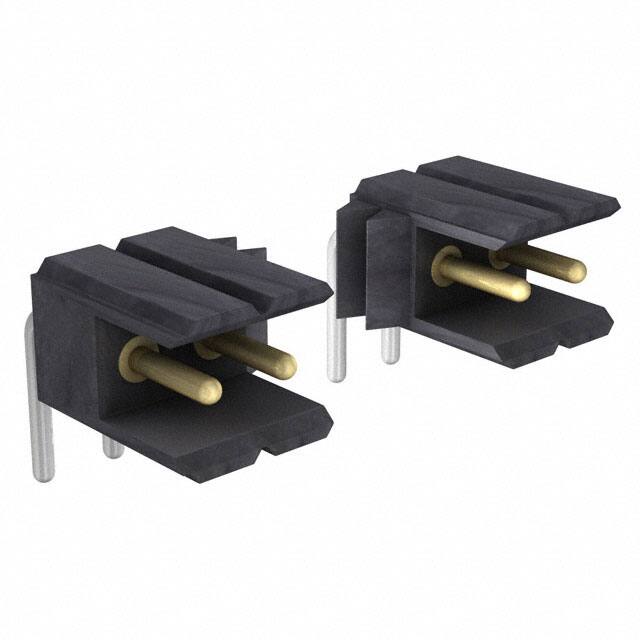

800-V3-015-22-002101

Teknik Özellikler

Montaj

Through Hole

Contact Length Post

0.126 3.20mm

Insulation Height

0.172 4.37mm

Current Rating Amps

3A

Ambalaj

Bulk

Plating Thickness

30μin

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

500 Cycles

Seri

800

Nominal Gerilim

150VDC

Montaj Tipi

Through Hole, Right Angle

Connector Type

Header

Contact Lengthmating

0.141 3.60mm

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

15

Number Of Pcb Rows

1

Contact Type

Male Pin

Yayın Yılı

2012

Number Of Positions Loaded

All

Number Of Conductors

ONE

Terminal Adımı

2.54mm

Contact Finish Post

Tin

Contact Shape

Circular

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

1

Shrouding

Unshrouded

Fastening Type

Push-Pull

Terminal

Solder

Reference Standard

UL

Contact Materials

Brass

Polarization Key

POLARIZED HOUSING

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Style

Board to Board

Contact Finish Thickness Mating

29.5μin 0.75μm

Contact Finish Mating

Gold
