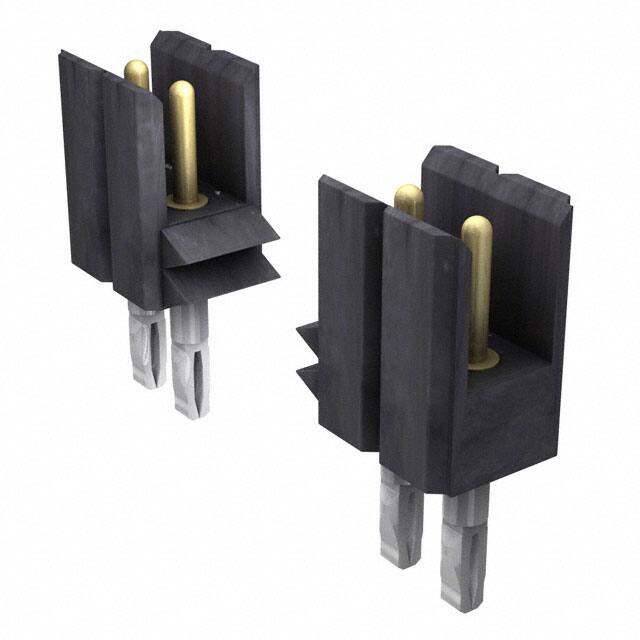

800-V3-007-6B-002101

Teknik Özellikler

Montaj Tipi

Through Hole

Seri

800

Nominal Gerilim

150VDC

Durability

500 Cycles

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Plating Thickness

30μin

Contact Length Post

0.110 2.79mm

Current Rating Amps

3A

Insulation Height

0.272 6.91mm

Montaj

Through Hole

Contact Finish Post

Tin

Contact Shape

Circular

Insulation Color

Black

Terminal Adımı

2.54mm

Number Of Conductors

ONE

Number Of Positions Loaded

All

Yayın Yılı

2012

Pozisyon Sayısı

7

Number Of Pcb Rows

1

Contact Type

Male Pin

Connector Type

Header

Pcb Contact Pattern

RECTANGULAR

Contact Lengthmating

0.141 3.60mm

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Style

Board to Board

Polarization Key

POLARIZED HOUSING

Contact Materials

Bronze

Terminal

Press-Fit, Solder

Reference Standard

UL

Shrouding

Unshrouded

Fastening Type

Push-Pull

Overall Contact Length

0.378 9.60mm

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

1

Reliability

COMMERCIAL
