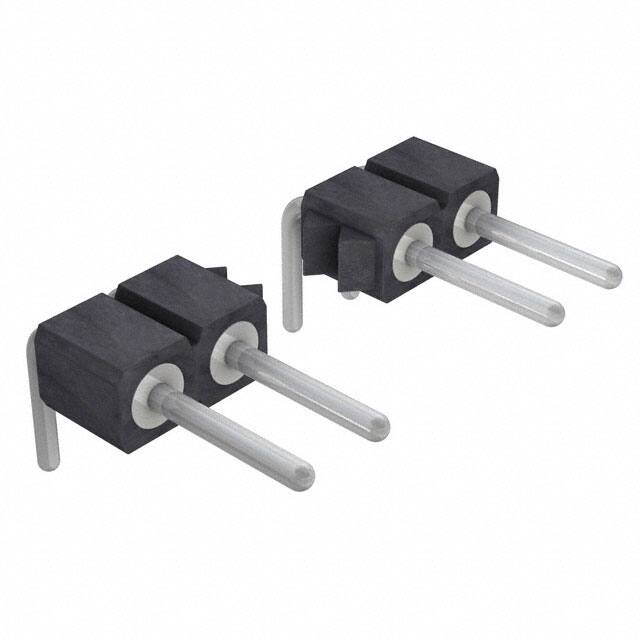

800-80-007-20-001101

Teknik Özellikler

Yayın Yılı

2010

Number Of Positions Loaded

All

Uzunluk

17.78mm

Number Of Conductors

ONE

Contact Shape

Circular

Connector Type

Header

Contact Lengthmating

0.195 4.95mm

Pcb Contact Pattern

RECTANGULAR

Gender

Male

Number Of Pcb Rows

1

Pozisyon Sayısı

7

Contact Type

Male Pin

Durability

500 Cycles

Nominal Gerilim

150VDC

Seri

800

Rated Current Signal

3A

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Contact Length Post

0.126 3.20mm

Insulation Height

0.100 2.54mm

Ambalaj

Bulk

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Depth

9.46mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polychlorinated

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Reliability

COMMERCIAL

Akım Değeri

3A

Contact Finish Mating

Tin

Contact Materials

Brass

Housing Color

Black

Orientation

Right Angle

Max Current Rating

3A

Max Voltage Rating Ac

100V

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Yükseklik

2.54mm
