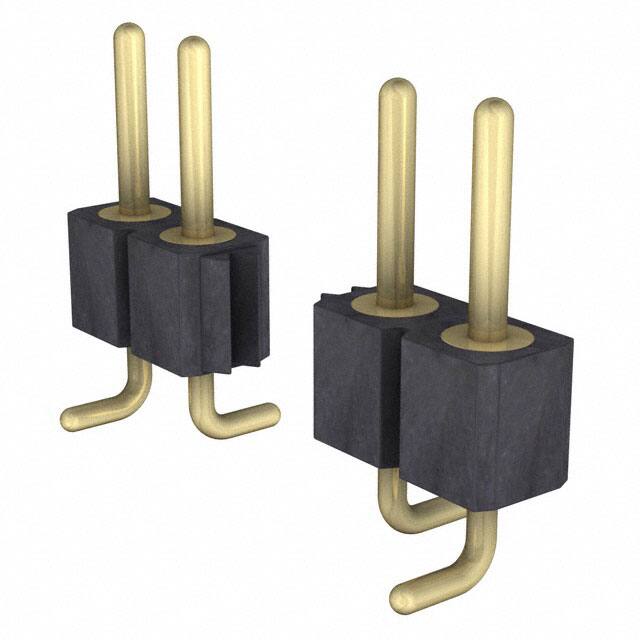

800-10-023-30-001101

Teknik Özellikler

Number Of Conductors

ONE

Terminal Adımı

5.08mm

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Insulation Height

0.116 2.95mm

Seri

800

Reference Standard

UL

Pcb Contact Pattern

STAGGERED

Parça Durumu

Active

Ambalaj

Bulk

Total Number Of Contacts

23

Nominal Gerilim

150VDC

Contact Lengthmating

0.191 4.85mm

Contact Finish Thickness Post

10.0μin 0.25μm

Pozisyon Sayısı

23

Contact Materials

Brass

Body Length Or Diameter

2.3 inch

Reliability

COMMERCIAL

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Shrouding

Unshrouded

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Solder

Contact Shape

Circular

Number Of Positions Loaded

All

Sıra Sayısı

1

Style

Board to Board

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Durability

500 Cycles

Yayın Yılı

2012

Connector Type

Header

Contact Type

Male Pin

Current Rating Amps

3A

Contact Finish Thickness Mating

10.0μin 0.25μm

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold
